Omnipure Quick Change Triple Under Sink Replacement Filter Set Q5540 + Q5520 + Q5586

This is a replacement filter set to suit an Ompnipure 10" Quick Change Triple Under Sink Water Filter System. The Omnipure Q-Series Triple Set is a suitable upgrade to the older set up which use the Q5505 pre filter.

Omnipure Quick Change Triple Under Sink Replacement Filter Set Q5540 Q5520 Q5586

This is a replacement filter set to suit an Ompnipure 10" Quick Change Triple Under Sink Water Filter System.

The Omnipure Q-Series Triple Set is a suitable upgrade to the older set up which use the Q5505 pre filter.

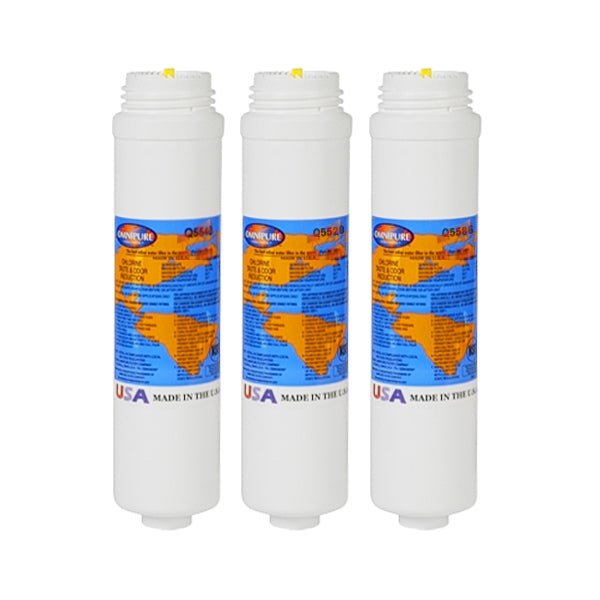

Package contains three filters:

1 x Omnipure Q5505 SEDIMENT

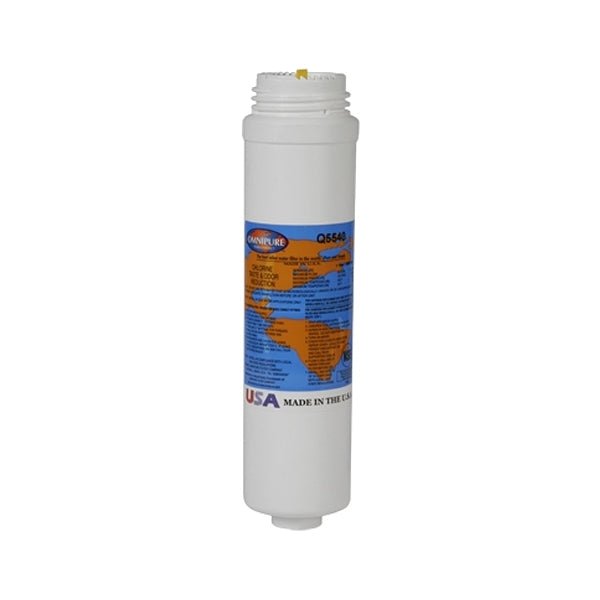

1 x Omnipure Q5540 granular activated carbon  Chlorine, taste, color, and odor reduction

1 x Omnipure Q5520 Cyst, chlorine, taste, color, odor and VOC reduction 1MICRON


These water filters are compatible with the following model:
Omnipure Quick Change filters are easy to replace and only require the water supply to be turned off. We recommend you replace your filters every 6 - 12 months depending on water quality and usage.
Made in USA by Omnipure



FIRST STAGE

Flow Rate

 0.5 gpm

Maximum Operating Pressure

 125 psig

Operating Temperature

 2 to 38 ºC35 to 100 ºF

Rated Capacity

 Dependent upon the quality of the influent water

Reduction Claim

 Dirt, sand, and sediment reduction

Filter Diameter

 2.5 in

Available Lengths

 6 in8 in10 in12 in14 in

Available Thread Size

 1/8 in1/4 in

Thread Type

 National Pipe Thread (NPT) - Female

Filter Head Type

 Non-ValvedValved

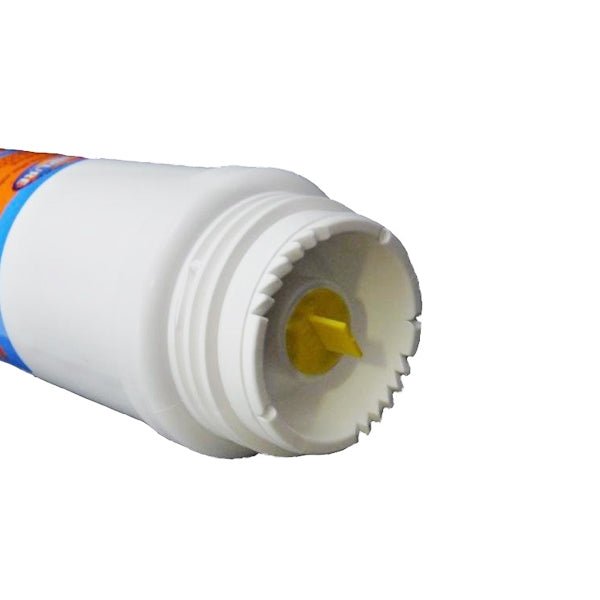

 The Q-Series is the ultimate "user friendly" inline filter on the market. Replacement is as easy as unscrewing the filter body from the permanent head and screwing in the replacement. The Q-Series is also available with the optional Twist Tap in-head valve system, which automatically turns the supply water off when the body is disconnected from the head. No tools. No drips. No hassles. The Q-Series is available in 2.5" diameter, and in lengths of 6", 8", 10", 12" and 14".
Sizes shown include 10

SECOND STAGE

Flow Rate

 0.5 gpm

Maximum Operating Pressure

 125 psig

Operating Temperature

 2 to 38 ºC35 to 100 ºF

Rated Capacity

 2,000 gal/1 Year

Reduction Claim

 Chlorine, taste, color, and odor reduction

Flow Capacity

 2,000 gal

Filter Diameter

 2.5 in

Available Lengths

 6 in8 in10 in12 in14 in

Available Thread Size

 1/8 in1/4 in

Thread Type

 National Pipe Thread (NPT) - Female

Product Type

 Granular Activated Carbon

Filter Head Type

 Non-ValvedValved

ANSI (American National Standards Institute) / NSF (National Sanitation Foundation) International Standards

General Installation / Operation / Maintenance Requirements

  • Note flow direction of filter.
  • For quick connect fittings, push scratch free tube end into the fitting until it bottoms. Threaded fittings must be wrapped with PTFE tape before installation. Install PTFE taped fittings and tighten firm. Use two wrenches to firmly tighten tubing.
  • Flush new cartridge with 5 gallons of water prior to use and check for leaks. If leaks occur, check tightness of tubing and fittings. If leaks persist, discontinue use and call your supporting dealer.
  • Replace cartridge when rated capacity (2,000 gallons) is reached, or when flow becomes too slow.
  • Install in compliance with state and local laws and regulations.



 THIRD STAGE



Flow Rate

 0.5 gpm

Maximum Operating Pressure

 125 psig

Operating Temperature

 2 to 38 ºC35 to 100 ºF

Rated Capacity

 2,500 gal/1 Year

Reduction Claim

 Cyst, chlorine, taste, color, odor and VOC reduction

Flow Capacity

 2,500 gal

Filter Diameter

 2.5 in

Available Lengths

 6 in8 in10 in12 in14 in

Available Thread Size

 1/8 in1/4 in

Thread Type

 National Pipe Thread (NPT) - Female

Filter Size

 1 µ

Filter Head Type

 Non-ValvedValved
