AS1357.2 & AS/NZS2845.1
Lic.WMKA2596

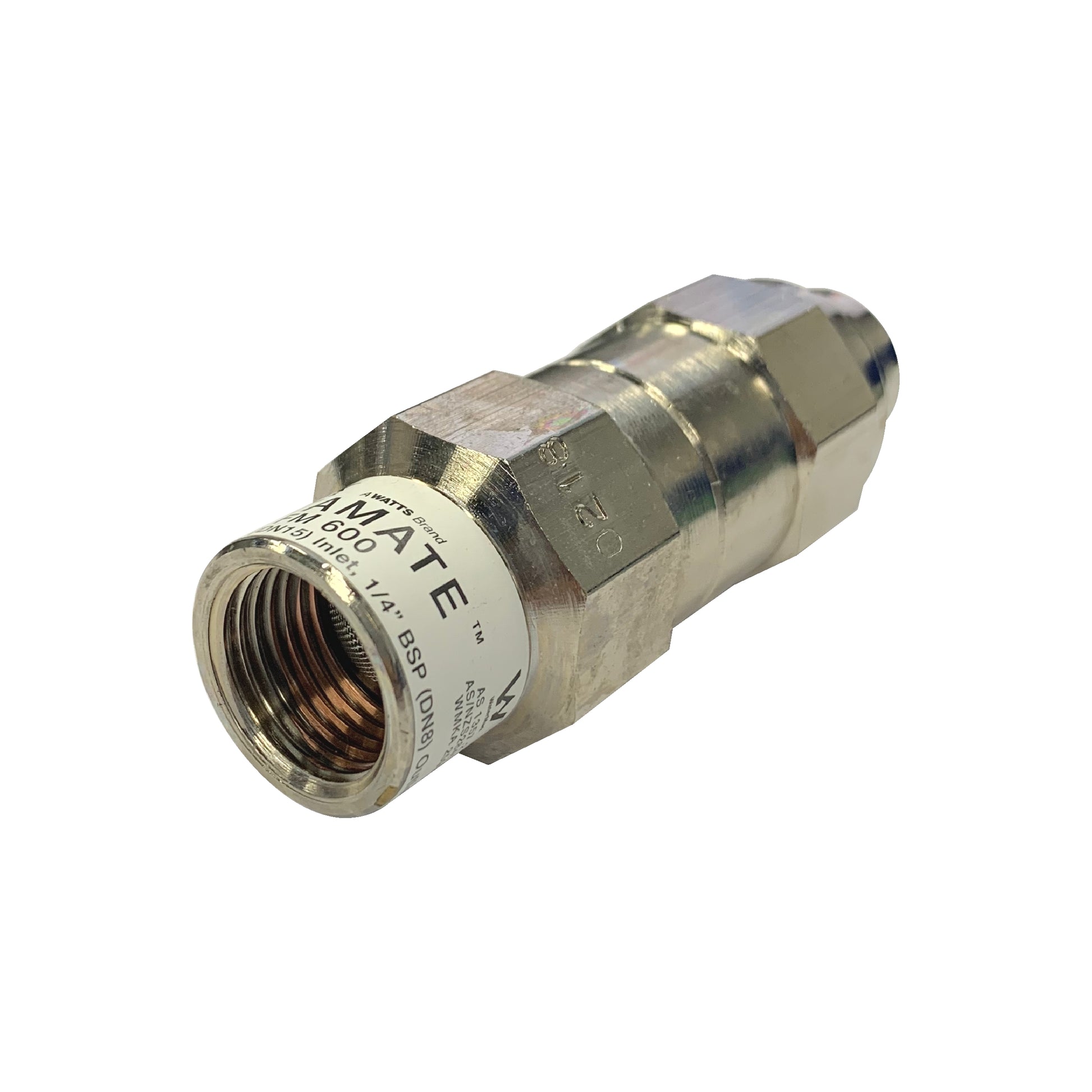

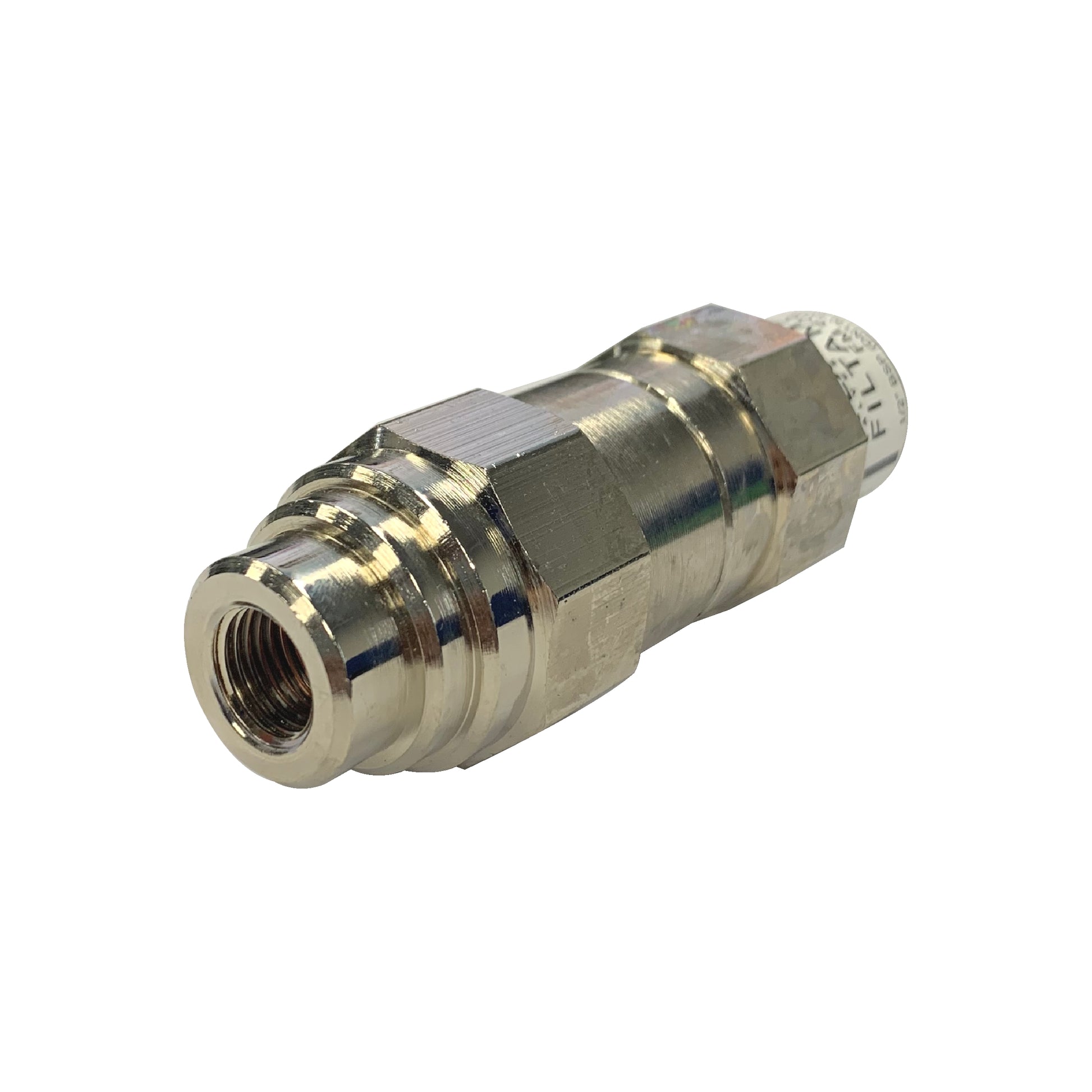

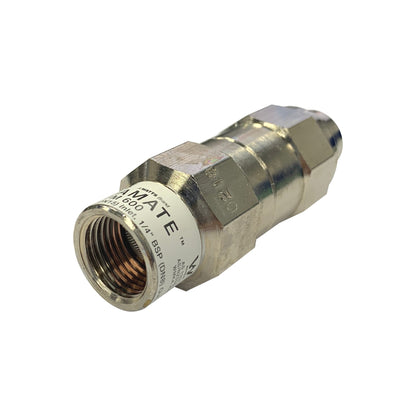

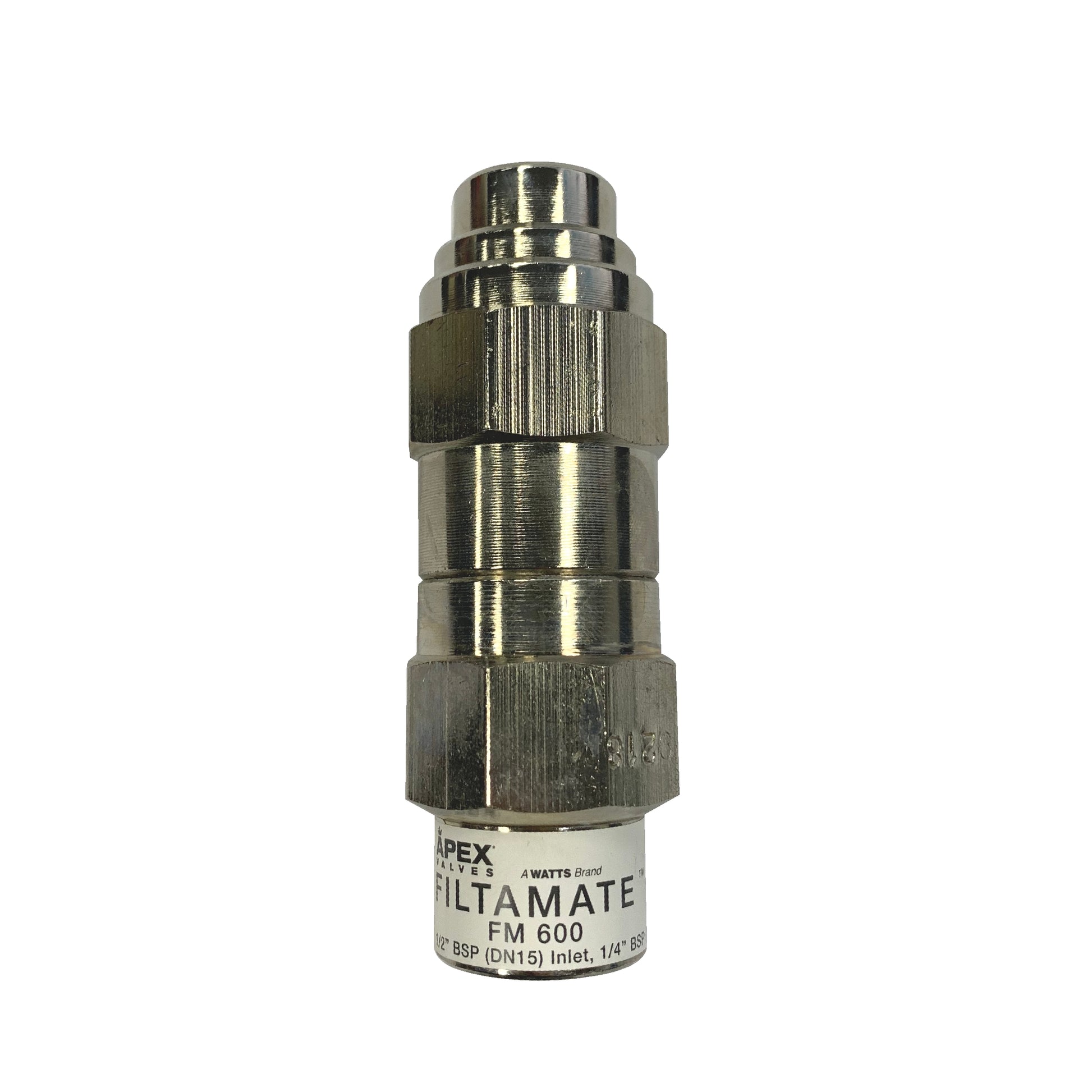

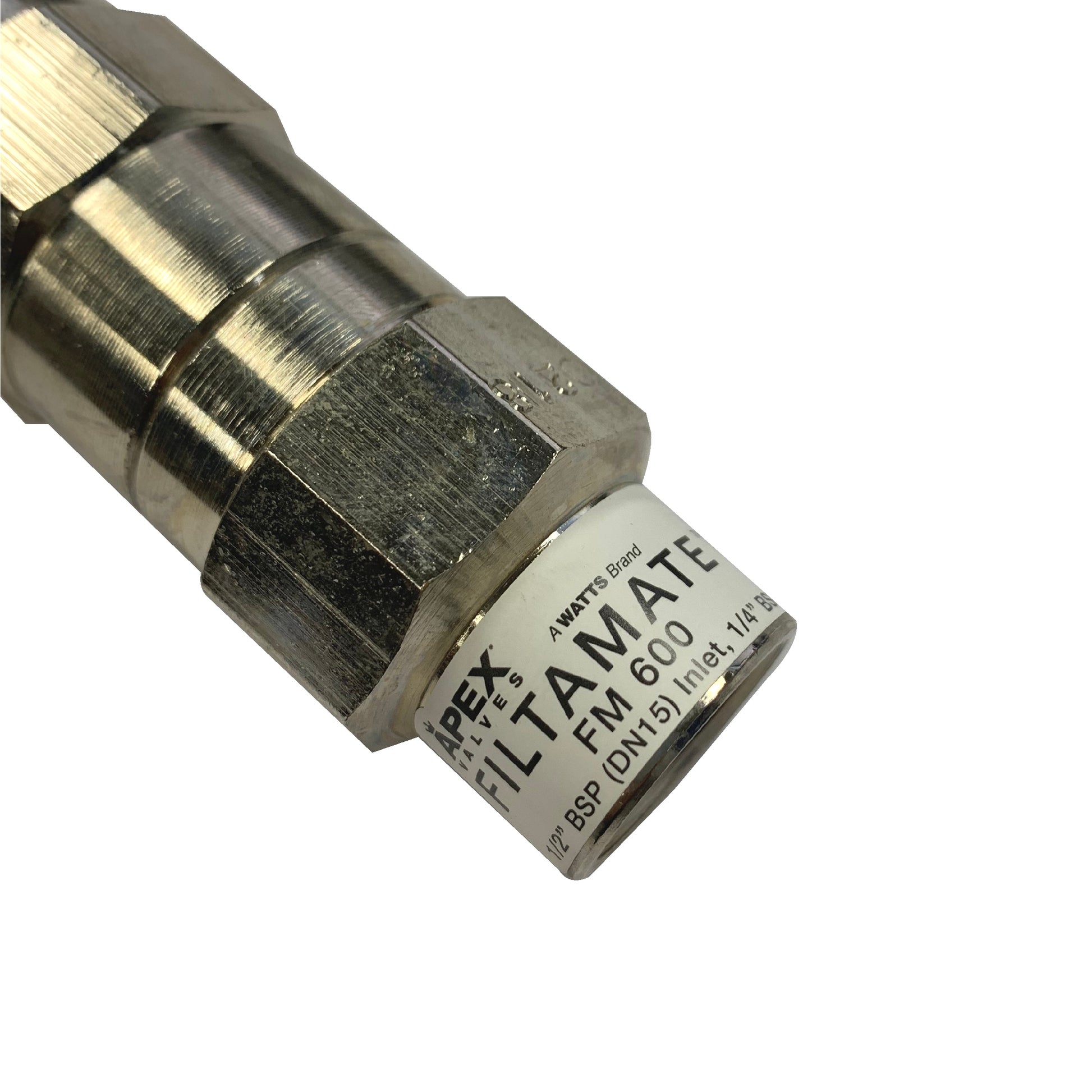

Apex 600kPa Pressure Limiting Valve – FM600 / VPL-DCB-600
Pressure Limiting Valve (PLV) · Pressure Reducing Valve · Pressure Reduction Valve
Made from Brass with 1/2" BSP female thread Inlet Side and 1/4" NPT Female Thread Outlet Side.
Suitable for high-pressure systems to protect drink dispensers e.g. water filters, ice makers, coffee machines, and reverse osmosis machines.
Standards:
- NZ Building Code G12 (2001)
- NZS 4608:1992
- WaterMark Approval AS 1357.2 Lic. 02596
Highly recommended when installing water filter systems.
Features:
- Integral Dual Check Valves (Australia Only).
- Resists water hammer.
- Stops backflow.
- FM fitted with integral line strainer.
- FM DR (Dezincification Resistant) brass.
Product Description
The APEX FiltaMate FM600 1/4" Pressure Limiting Valve is ideal for use on drinking water equipment and filtration systems.
Machined from high quality DR brass and incorporating Dual Check to prevent backflow, these quality valves protect equipment from damage by limiting the water pressure to the appliance.
The 8mm (1/4" BSP) Connections allow for easy plumbing to existing or new installations.

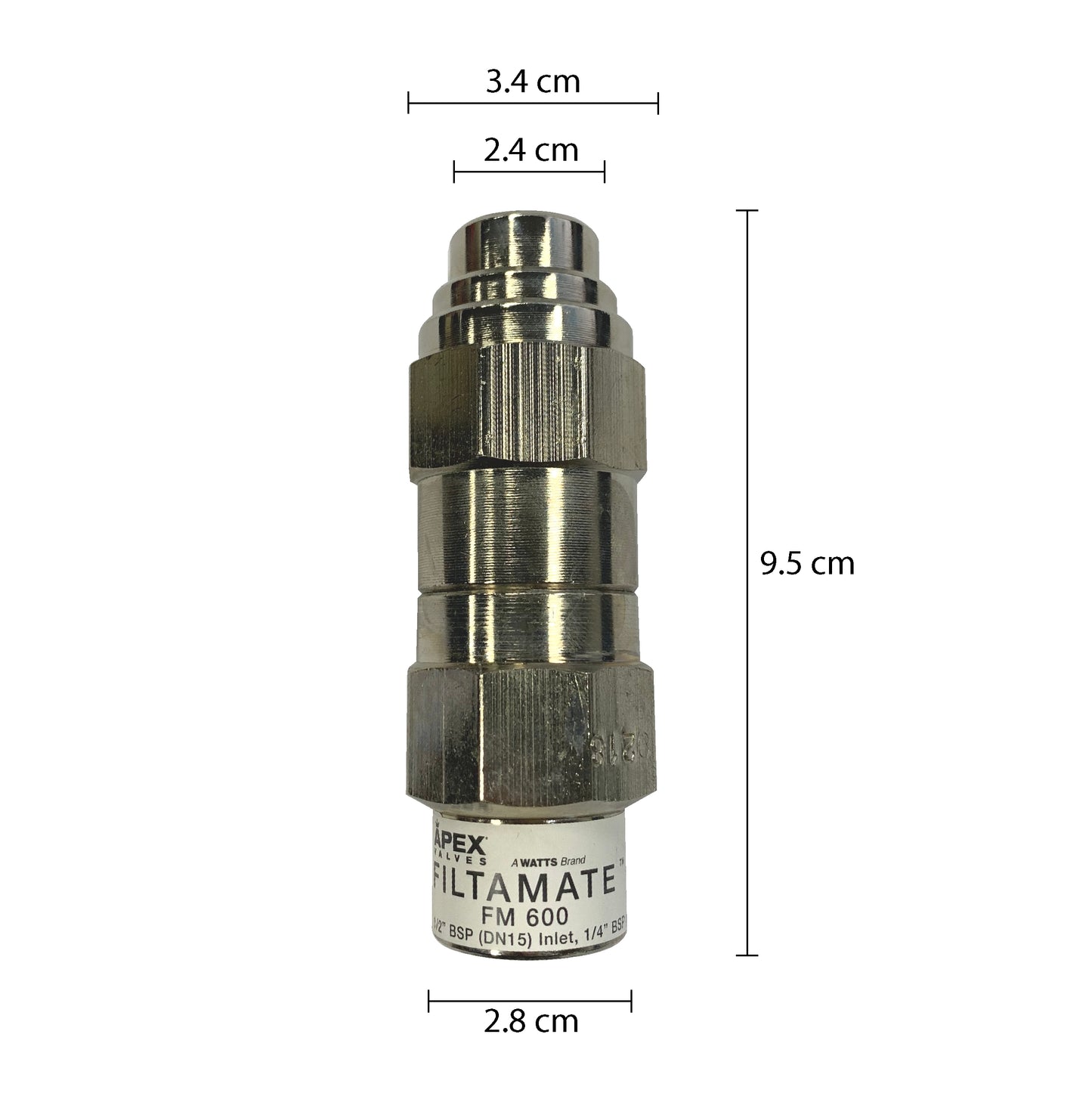

Overall length of the valve is 100mm.
Also available in 600kPa model to suit lower pressure requirements.
(VF-PLV-FM600-12)
Specifications
APEX FiltaMate FM600 1/4 Brass 600kPa PLV
SKU: VF-PLV-FM600-12
APEX FiltaMate FM600 1/4 Brass Pressure Limiting Valves reduce water pressure to 600kPa, providing protection from pressure spikes for water appliances and filter systems. Made from DR brass, the 15mm (1/4") Connections allow for easy plumbing.
Advanced Features & Benefits
- Precision machined from DR brass.
- Dual-Check Valves to prevent backflow making the valve ideal for filtration systems, fridges and ice makers.
- Protection for water appliances and filtration systems from water pressure spikes.
- Available in 350 and 600 kPa options.
