LAB PUA RESIDENTIAL WATER FILTER KIT LPA-CS1-15 /  THIS KIT IS UPGRADE KIT FOR MAXI PRO COMBO  QC6533P

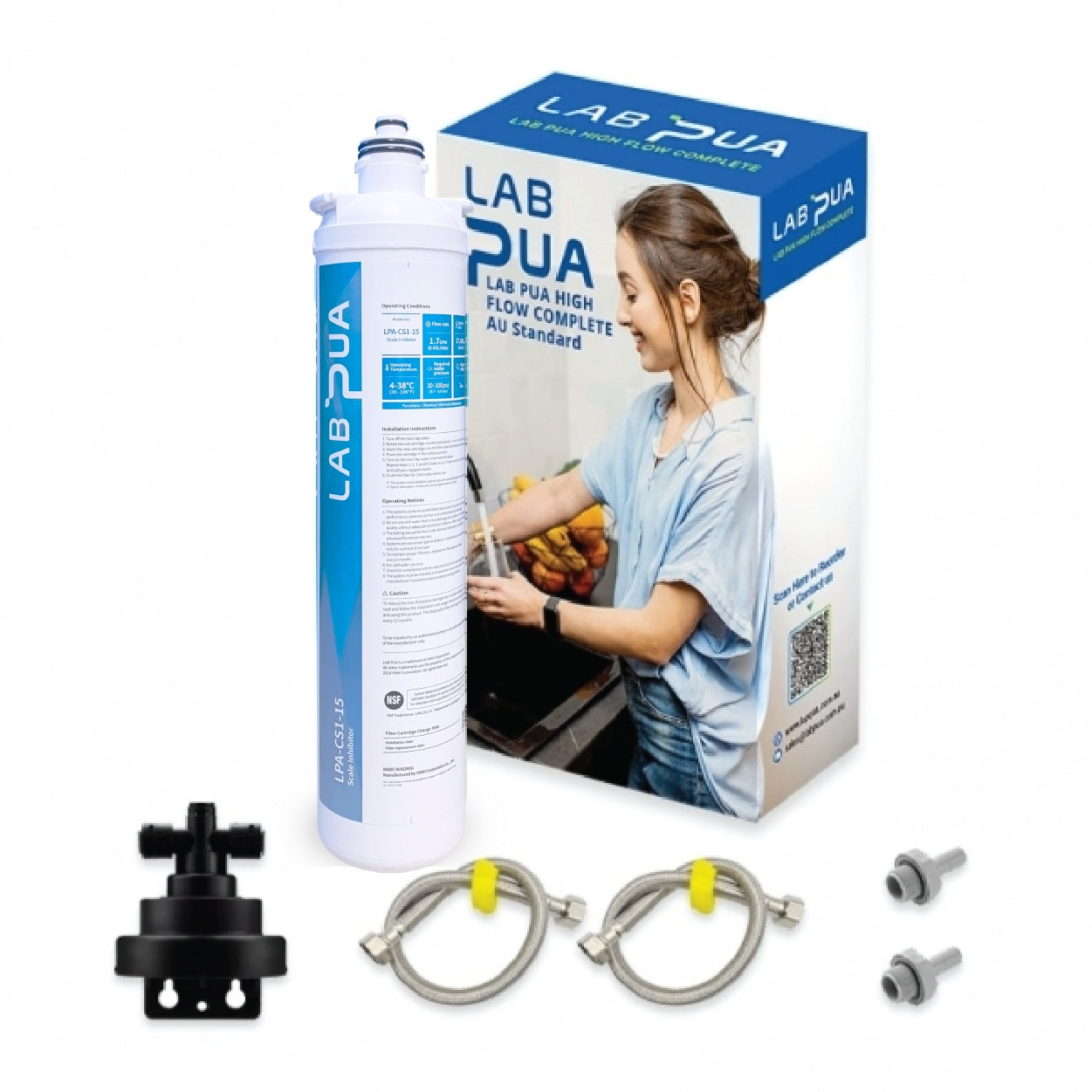

KIT INCLUDES

1X FILTER

1 X HEADER  WITH 15MM  BSP OUTPUT FOR 1/2" HOSE CONNECTION

1 X  BRACKET WITH EXTRA BRACKET FOR HORIZONTAL INSTALLATION CUSTOMER

1 X  3/8 " TO 1/2"  CONNECTION

1 X  15MM  BRAIDED  HOSE

References:

[1] NSW Health. Drinking water and public health

https://www.health.nsw.gov.au/environment/water/Pages/drinking-water-and-public-health.aspx

 Why Use the LPA-CS1-15 Water Filter?

Even though tap water in Australia is generally treated and safe to drink, health authorities such as NSW Health note that not all filters remove harmful microorganisms like Cryptosporidium and Giardia. The LPA-CS1-15 is specifically designed to meet those higher safety needs while also improving water quality and protecting appliances.

1. Meets Health Guidelines for Microorganism Protection

NSW Health recommends using an absolute 1 micron filter to reduce Cryptosporidium and Giardia.
→ The LPA-CS1-15 features a 1 micron hollow fiber membrane, helping reduce bacteria and cysts.

2. Improves Taste and Smell

Reduces chlorine, unpleasant taste, and odor often found in municipal tap water.

3. Removes Fine Particles

Rated for Particulate Class 1 (0.5–1.0 micron), helping improve water clarity and prevent sediment buildup.

4. Inhibits Scale

Helps reduce scale formation, which can protect appliances like kettles and coffee machines.

5. High Capacity and Flow

• Flow Rate: 1.7 GPM (6.43 L/min)

• Capacity: 17,000 gallons (64,345 L)
  Suitable for household or light commercial use.

6. Easy to Install and Replace

Quick-change cartridge design with standard 3/8″ connections makes it user-friendly and tool-free.

7. No Electricity Required

Operates without any electrical connection, ideal for homes, cafes, or caravans.

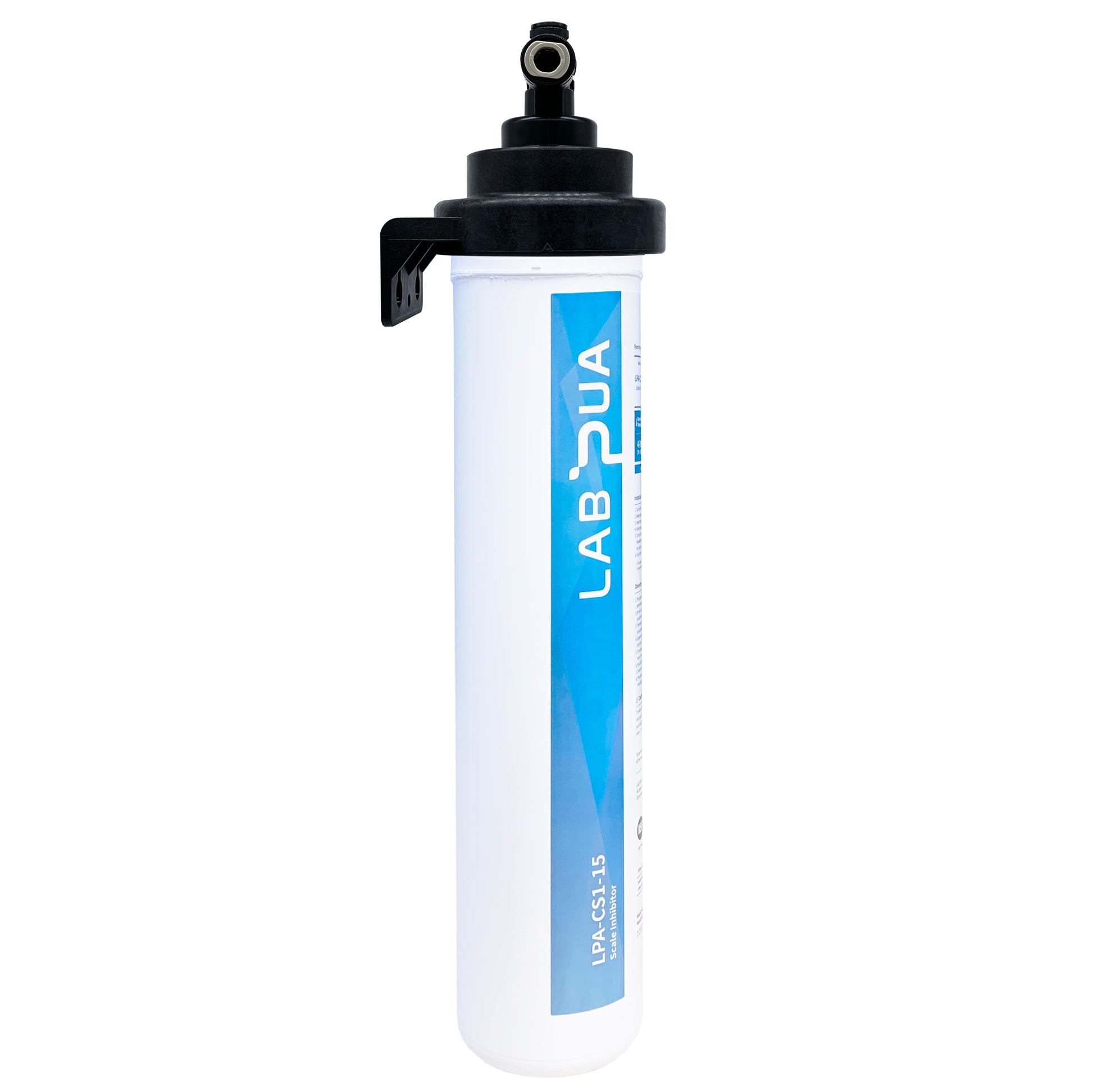

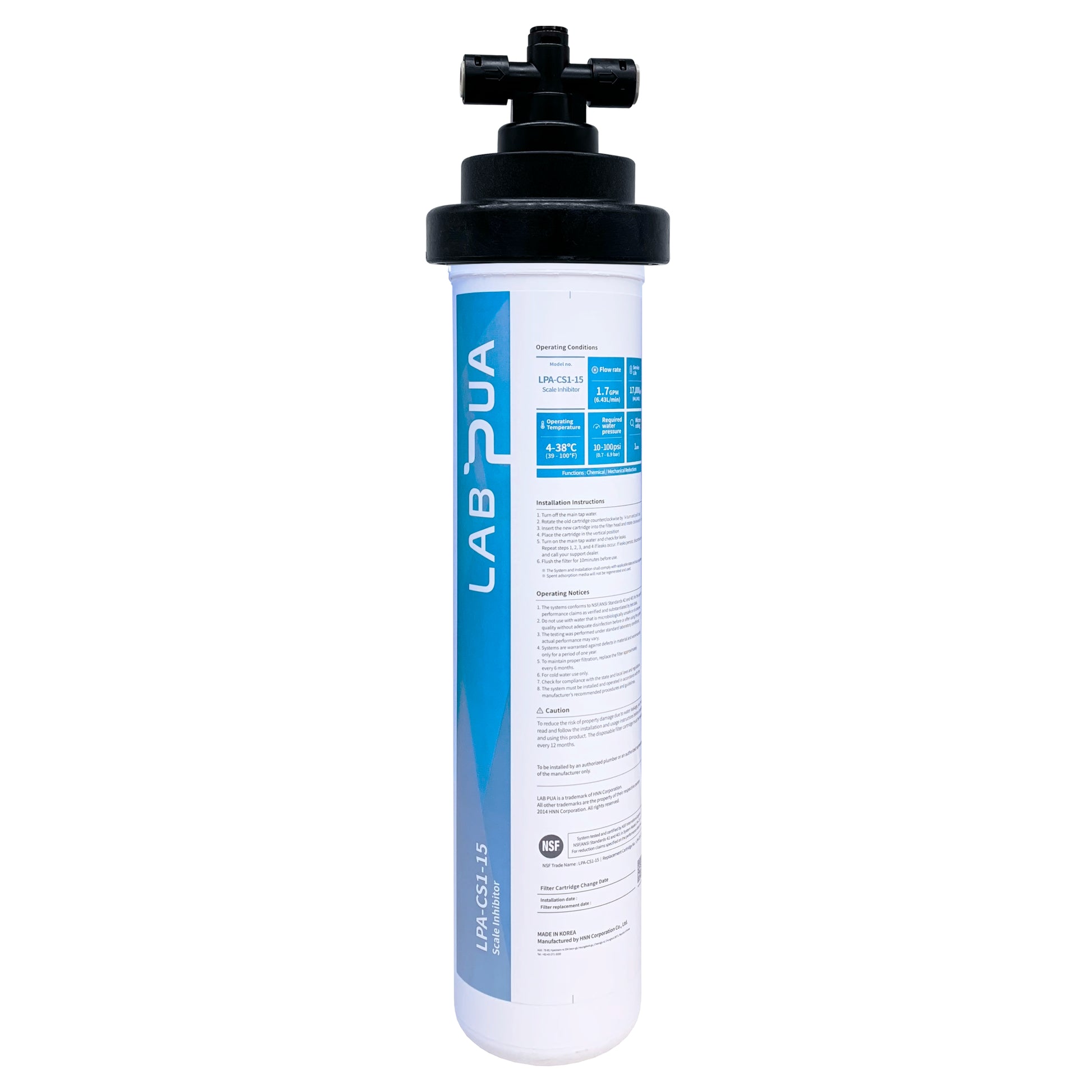

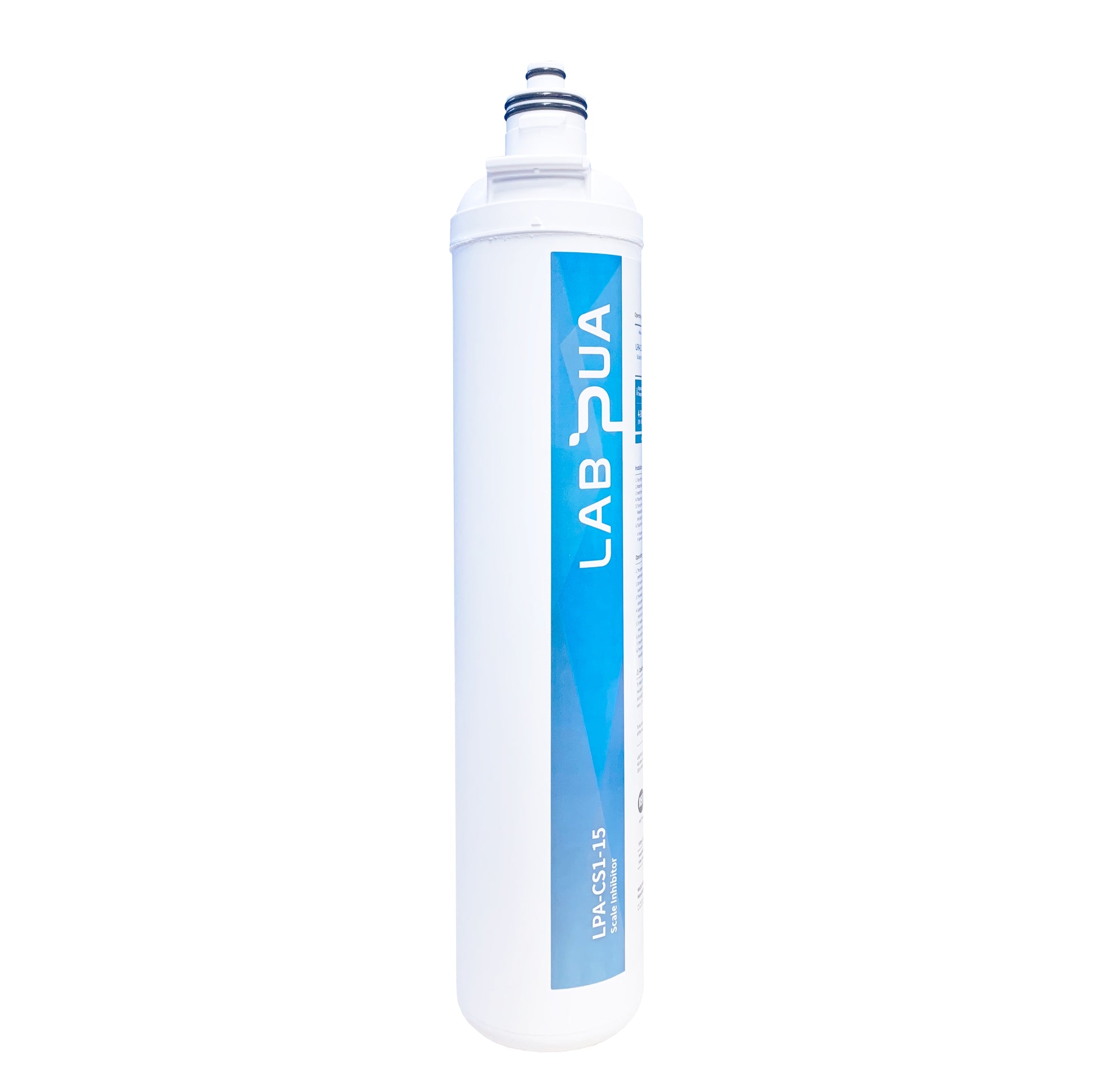

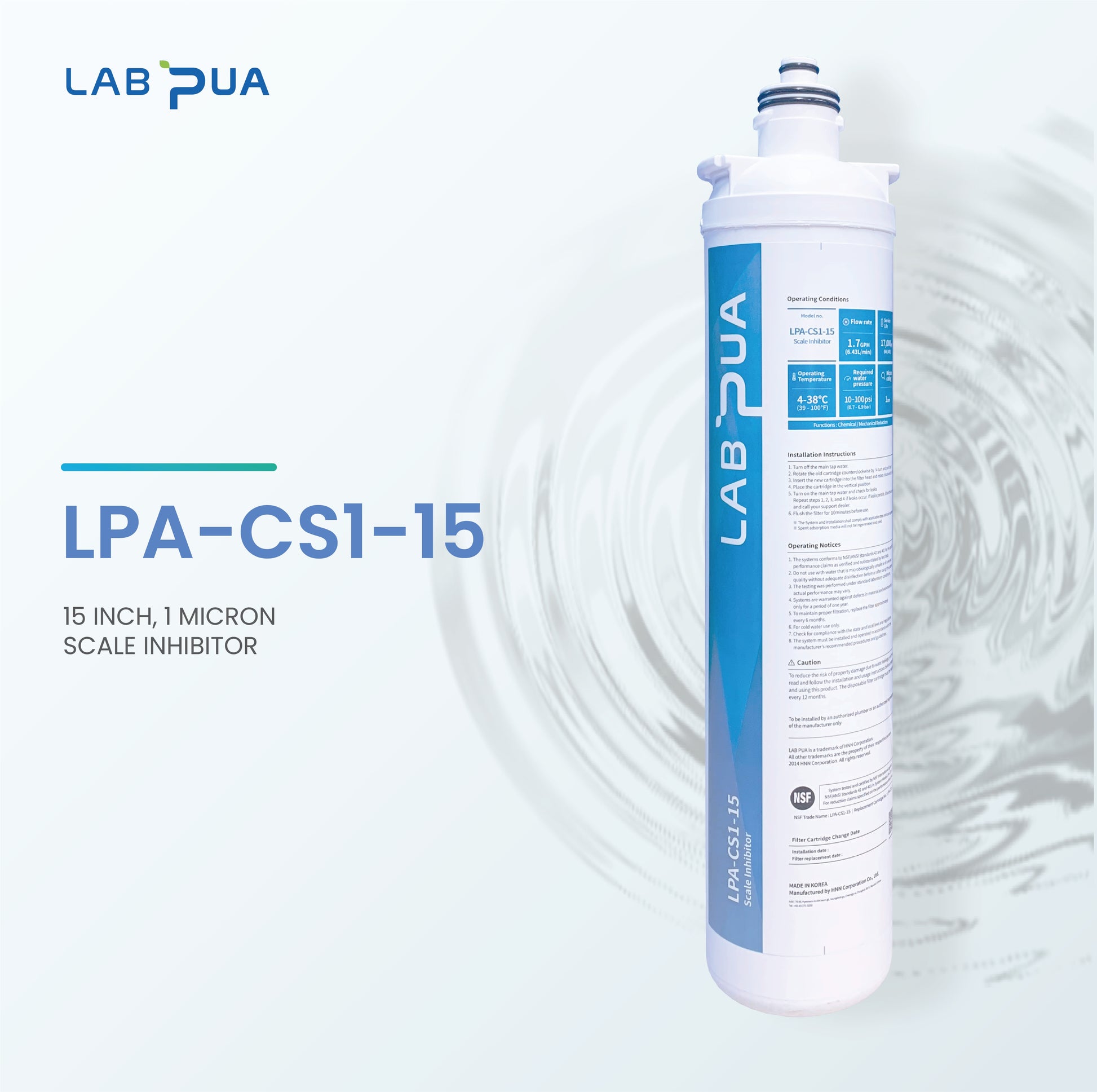

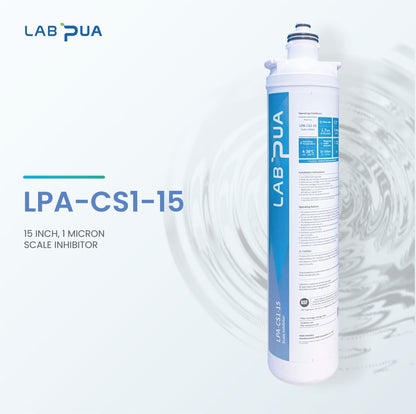

 Lab Pua LPA-CS1-15 (1um Scale inhibitor, 15″L)

SPECIFICATIONS

• Service Flow Rate: 1.7 GPM (6.43 L/min)
• Rated Capacity: 17,000 Gallons (64,345 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required

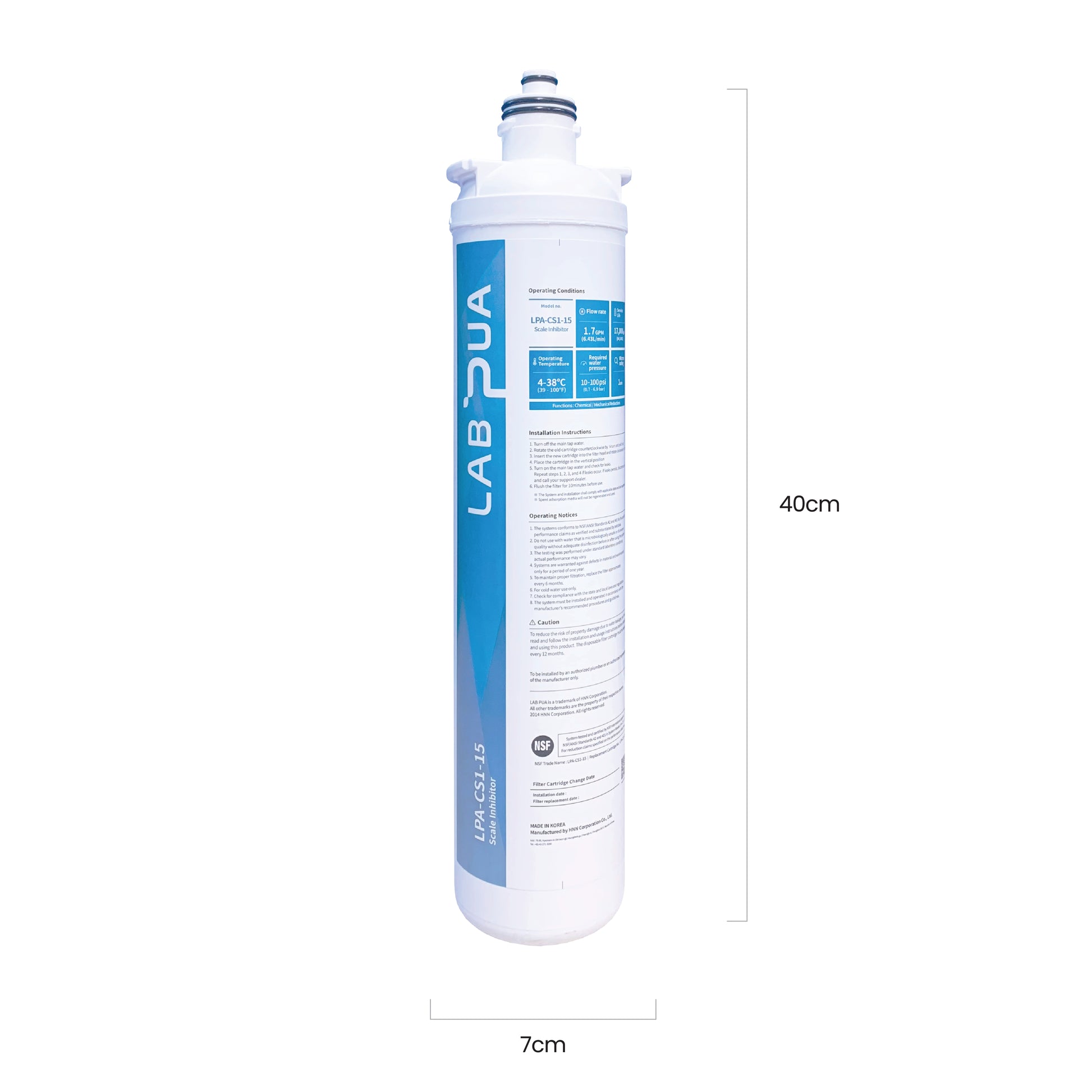

• Dimensions:
  • Overall: 3.7″ × 16.9″
  • Cartridge: Ø3.3″ × 15.7″
• Weight: 0.8 kg
• Claims:
  • Scale inhibitor
  • Reduces chlorine, taste and odor
  • Particulate Class 1 (0.5–1.0 μm)

FEATURES · BENEFITS

• Reduces Chlorine, Taste and Odor.
• 1um pore size can remove bacteria and cyst.
• Replacement method is easy quick-change.

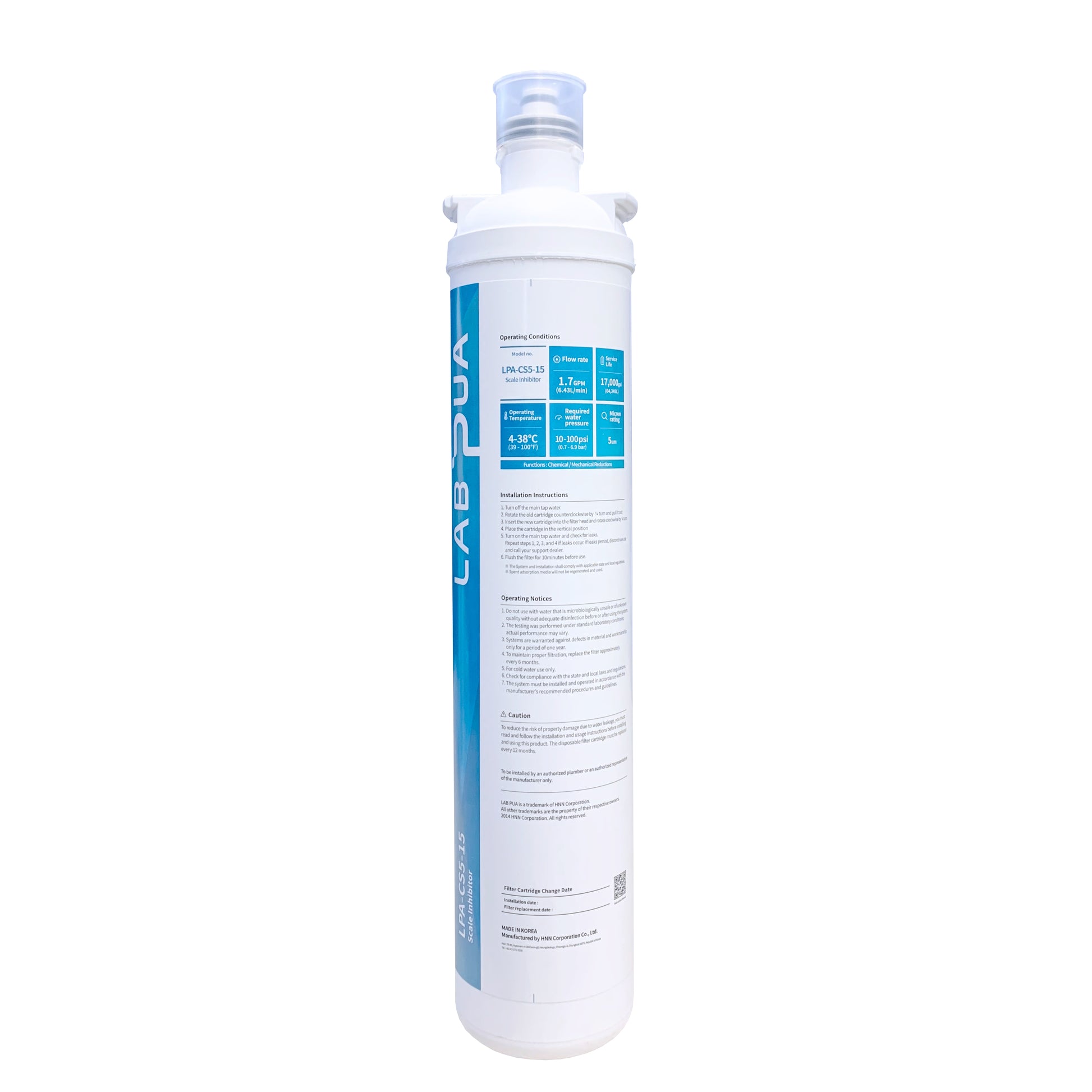

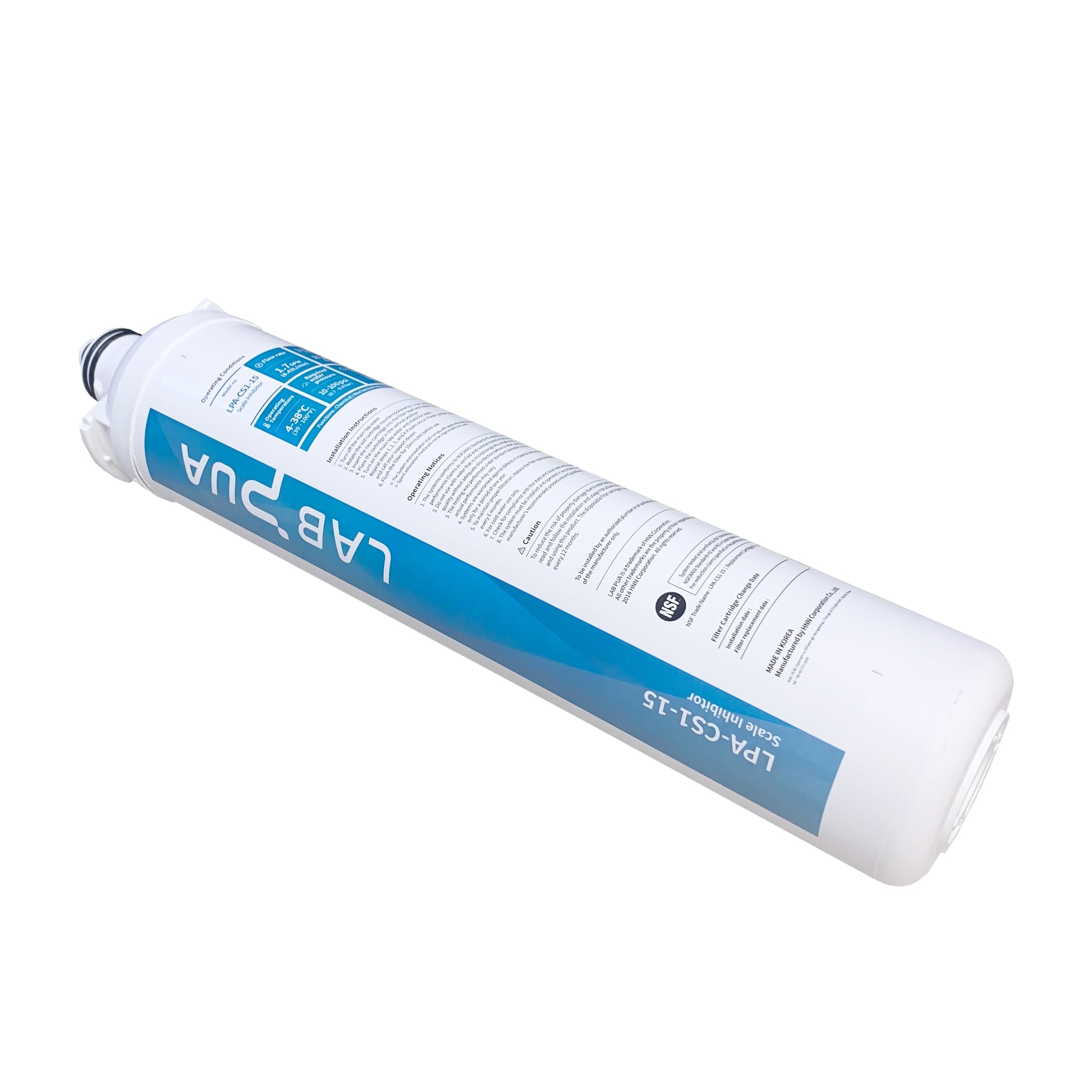

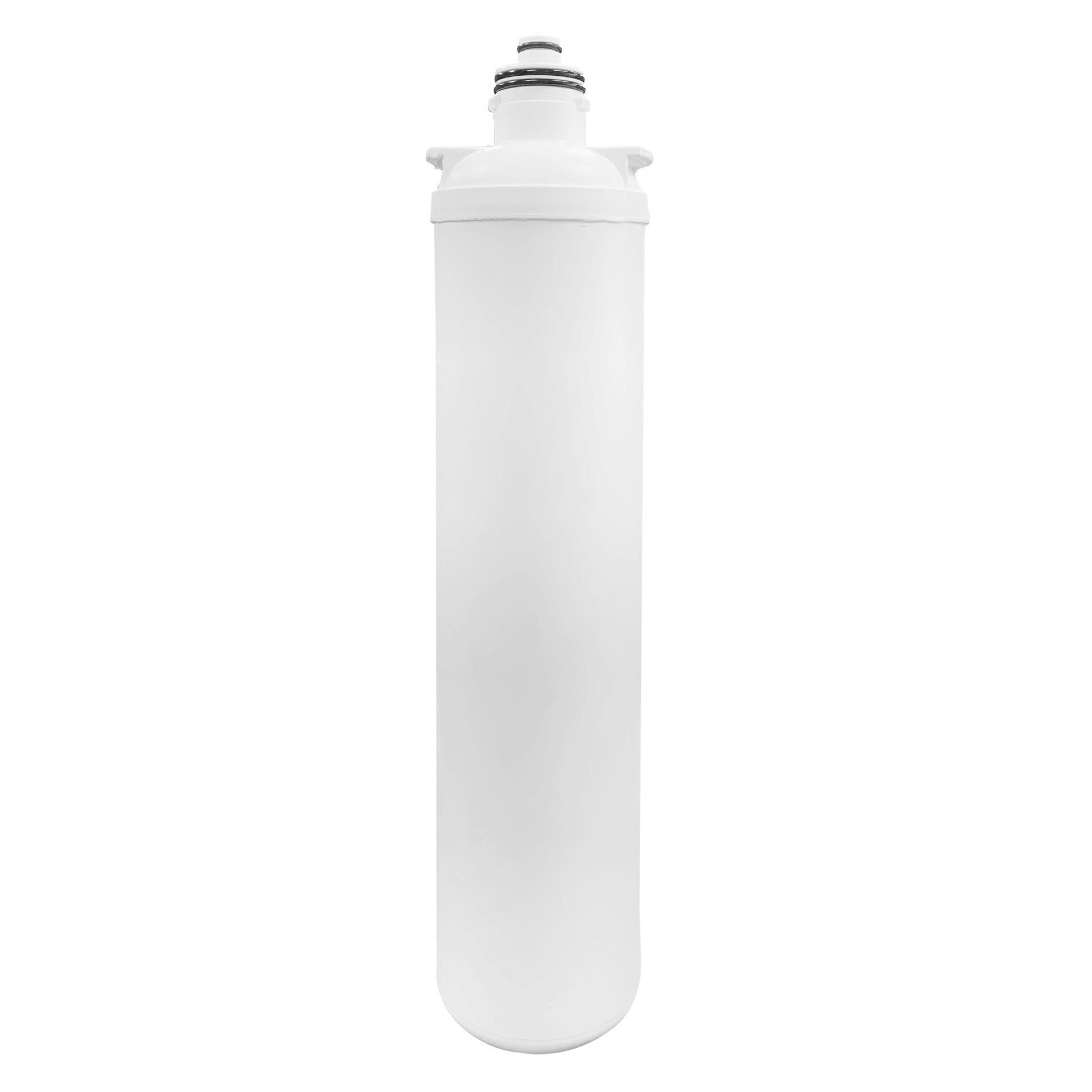

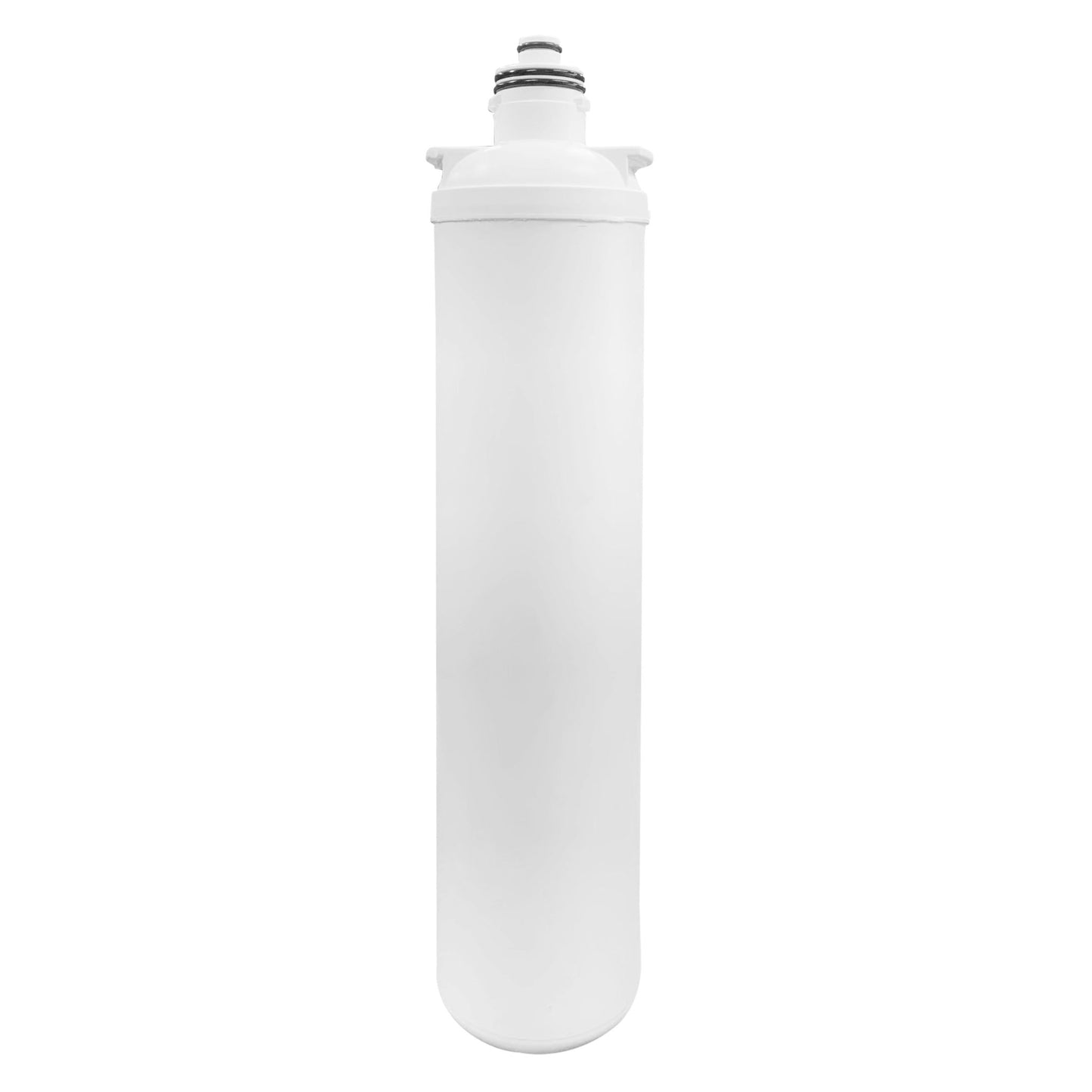

LPA-CS1-15 – Water Filter Cartridge

Specifications

• Service Flow Rate: 1.7 GPM (6.43 L/min)

• Rated Capacity: 17,000 Gallons (64,345 L)

• Operating Temperature: 4–38°C (39–100°F)

• Pressure Requirements: 10–100 psi (0.7–6.9 bar)

• Inlet/Outlet Connection: 3/8"

• Electrical Connection: None required

• Dimensions:

  • Overall: 3.7" × 16.9"

  • Cartridge: Ø3.3" × 15.7"

• Weight: 0.8 kg

Claims

Effectively reduces:

• Scale

• Chlorine

• Unpleasant taste and odor

• Particulate Class 1 (0.5–1.0 µm)

Features & Benefits

• Reduces chlorine, taste, and odor for better-tasting water

• 1-micron pore size helps remove bacteria and cysts

• Quick-change cartridge design for easy replacement

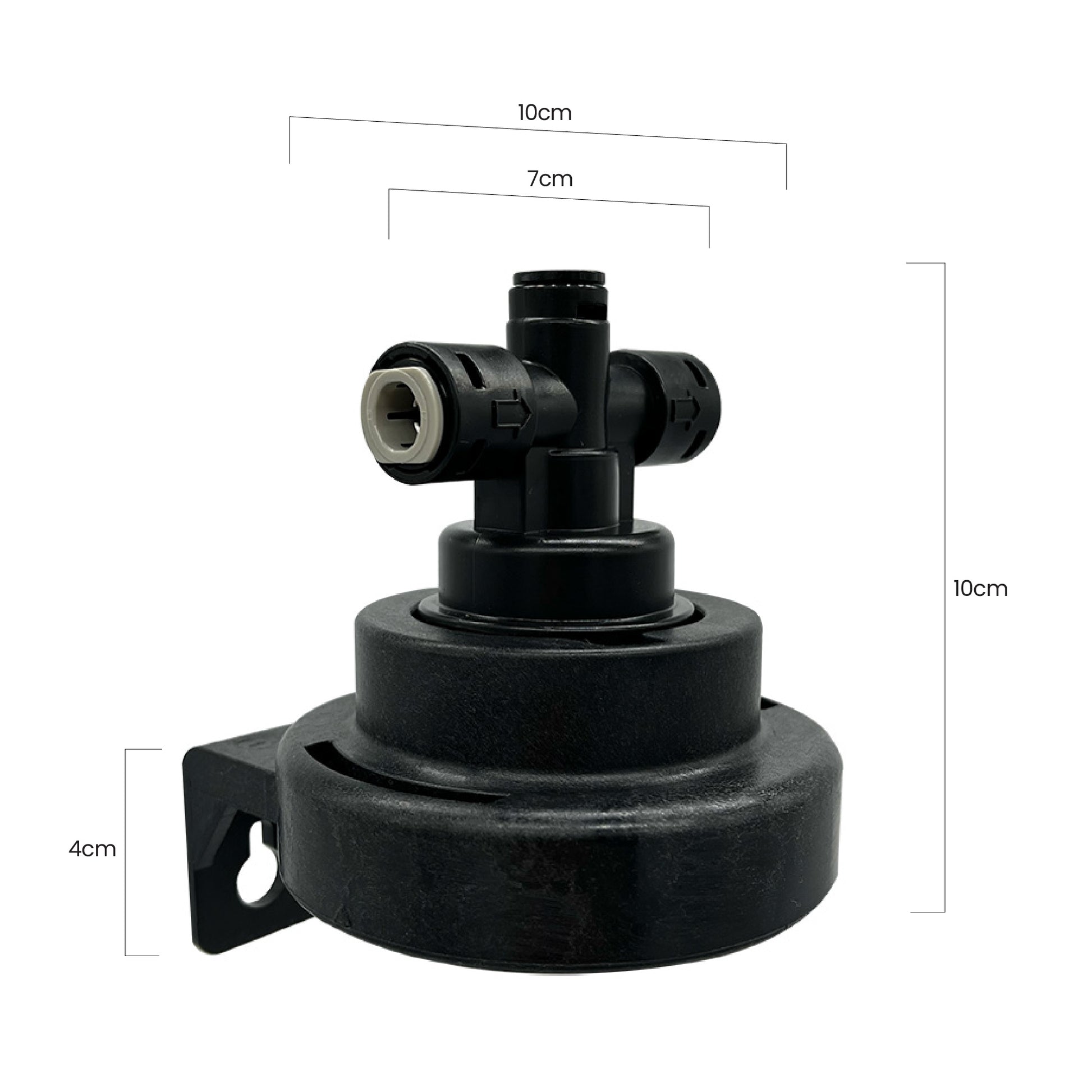

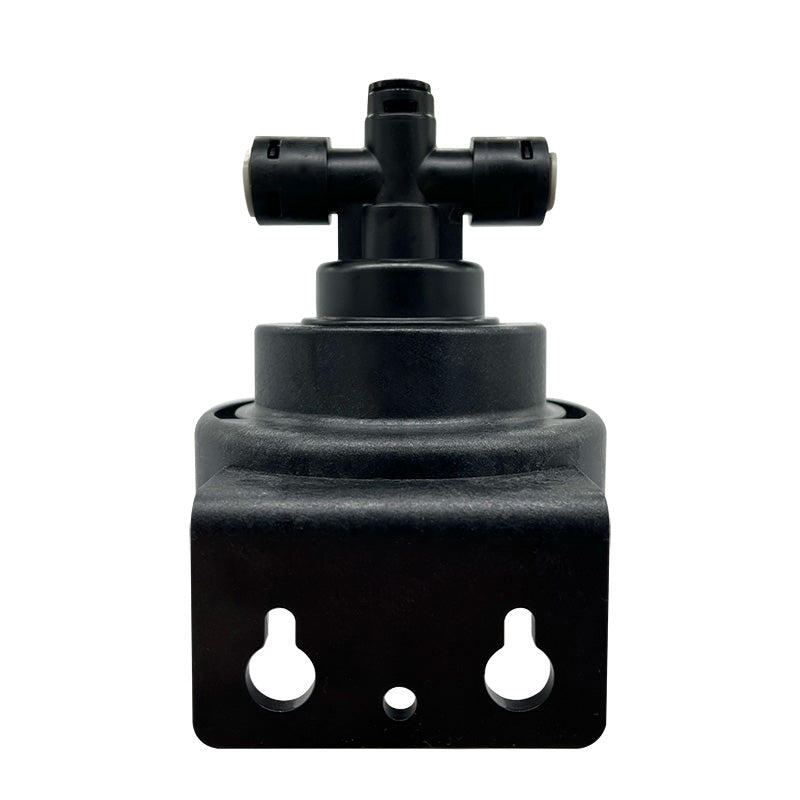

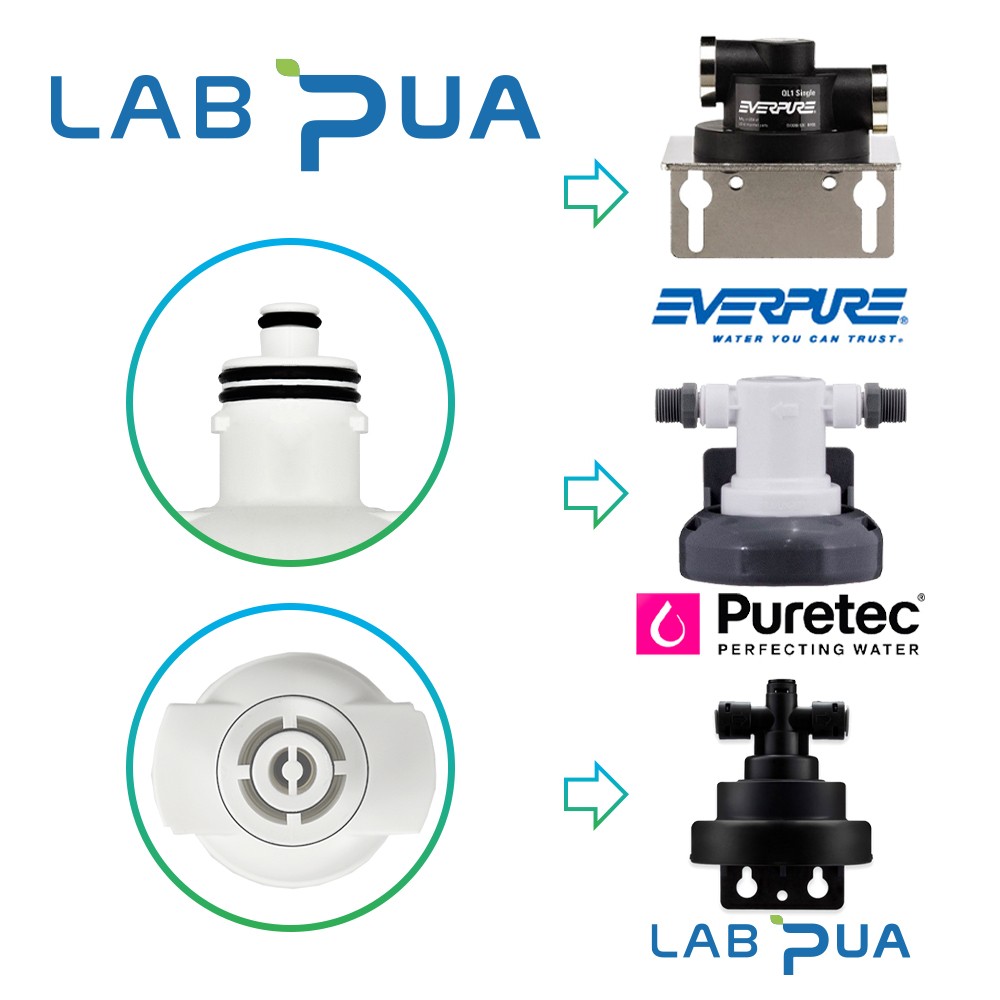

SINGLE HEADER

• Model : LPA138QC
• Dimension : 95.2x126.0x109.8(WxHxD)
• MOQ : 12pcs/box
• Features mounting bracket and 3/8” fittings
• Quick-Change Type Head(Manifold)
• Includes-built in water shut-off valve (Auto shut-off valve)
