Details
AK200128234
25MIC

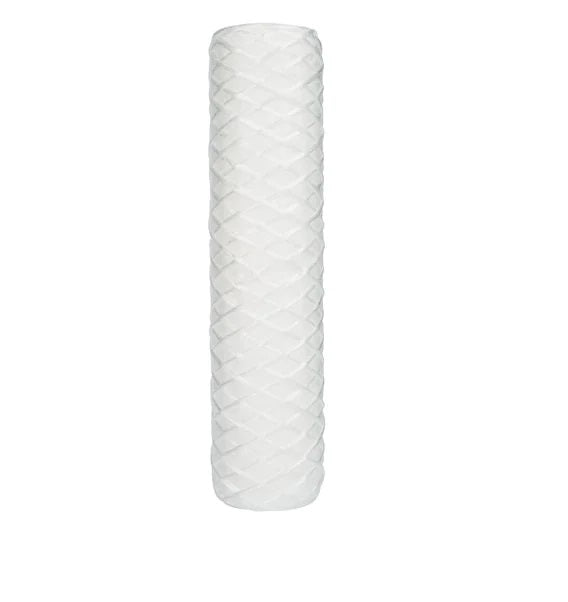

3M™ Micro-Klean™ D series filter cartridge is a major advance in blanketed filter technology. By combining an enhanced open wind process with an internal media blanket, the Micro-Klean D series provides superior flow rates, greater filtration efficiency and consistent filtration characteristics from cartridge to cartridge, lot to lot.
- Blanket media filter cartridge for higher filtration efficiency at the selected rating
- CFR 21 listed materials of construction, suitable for food & beverage and other regulated applications
- Graded density construction for longer filter life and more cost effective filtration
- Low extractable levels, suitable for water, electronics and electroplating
3M™
Micro-Klean D Series cartridges, formerly known as Micro-Wynd, are produced
by an exclusive 3M Purification process which combines 2 separate materials
simultaneously on a common core. The filtering media is applied in blanket form whilst the matrix (Polypropylene or Cotton) is wound spirally under
controlled tension to bind the media blanket in a firm position.
Features / Benefits
- Flow capacity up to 3 times higher than the conventional string wound cartridges
- highly efficient particle removal incinerate to trace ash for easy disposal.
- Dirt holding capacity up to twice greater
- ability to withstand high differential pressures (Delta P)
- support core eliminated resulting in greater compatibility
- reproductible filtration characteristics
- Available in cartridges from 10“ to 40”
- High temp. resistance (up to 121 °C)
- Nominal ratings from 1 to 125 μm.
- customized shapes and sizes available upon request
Functionality
- high purity chemicals
- bottled water
- pharmaceuticals, cosmetics
- Inks & dyes
- plastics
- organic solvents (alcohols, ketones, ethers…) and hydrocarbons
- paint, varnishes, solvent recovery
Typical Applications
- electronics - cooling water, condensate water
- power generation – waste water
- chemicals - acids prefiltration, process water, alcohols, solvents
- process water
- oil & gas - refined products, prefiltration, aggressive solvents
- general industrial - metallisation bath, waste water
- food & beverage – prefiltration process water
