20" Big Blue Triple Housing with Stand PP Sediment supported NANO-ZINC, Activated Carbon Block Filters

20" Big Blue Whole House Water Filtration System - this water treatment system treats all of the water entering your home, removing sand, silt, sediment, rust and other particles that can damage your water softener, prematurely foul carbon filters or ruin the plumbing fixtures and valves. This Dual Water System effectively eliminates many impurities from tap water to offer sparkling clean and great tasting water throughout your whole house.

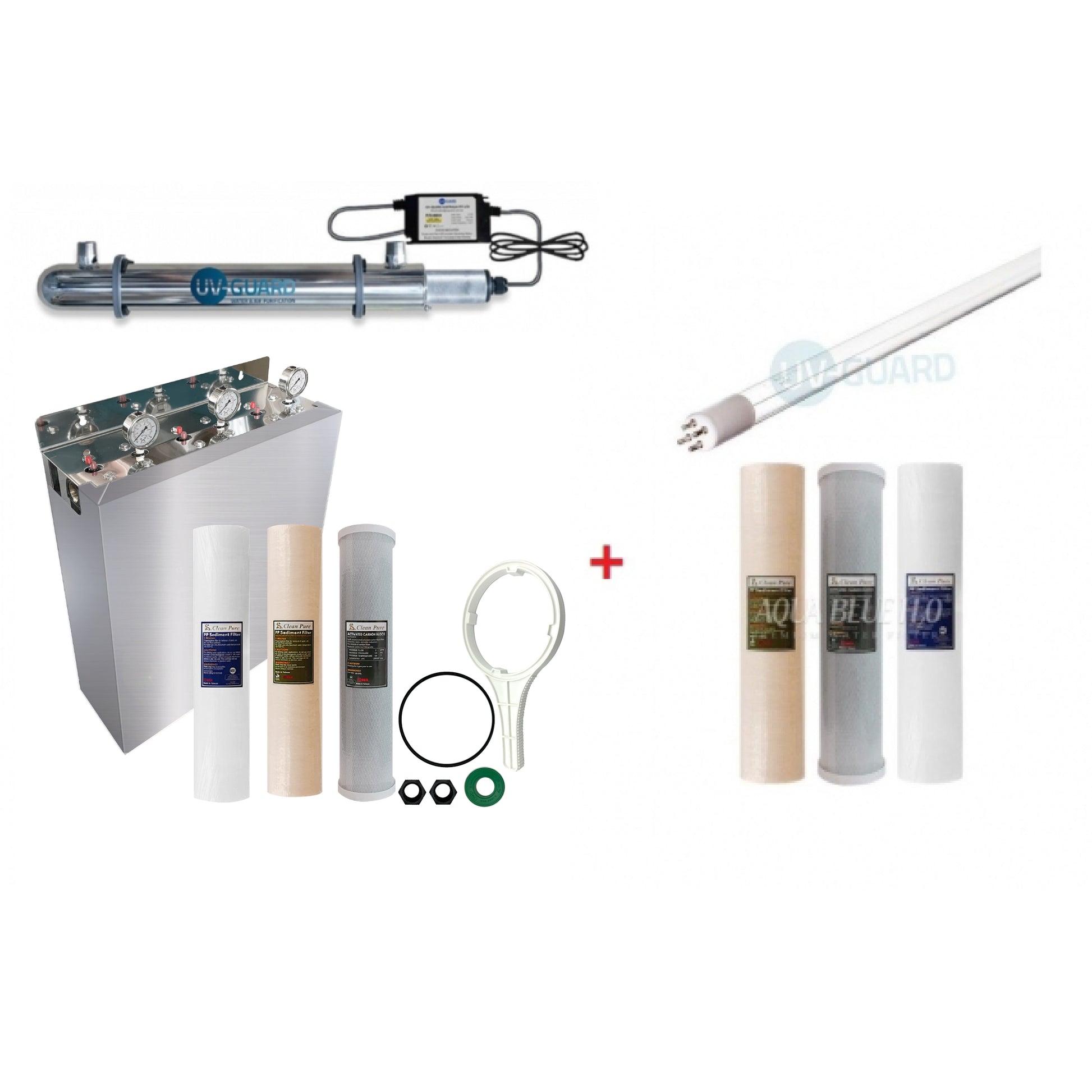

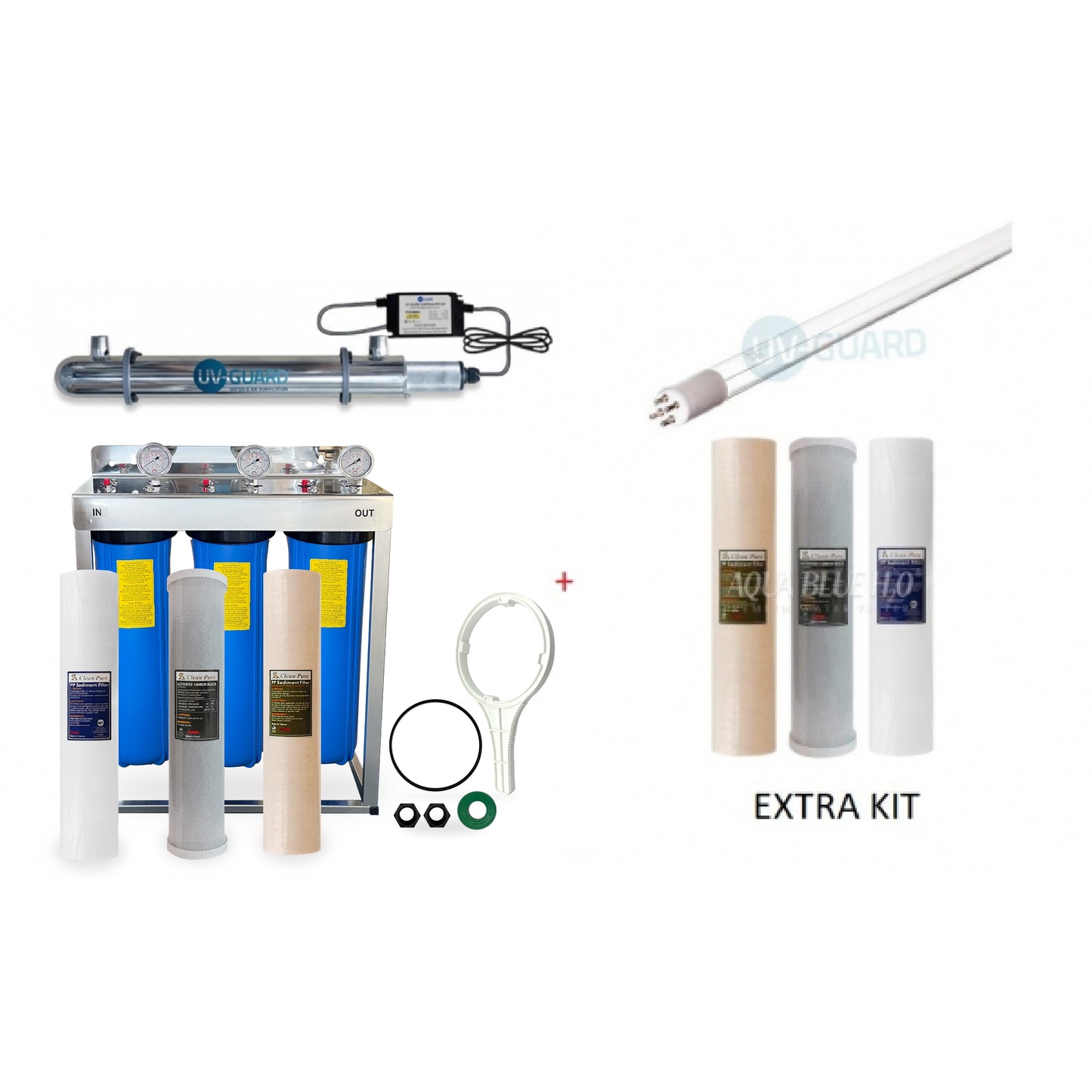

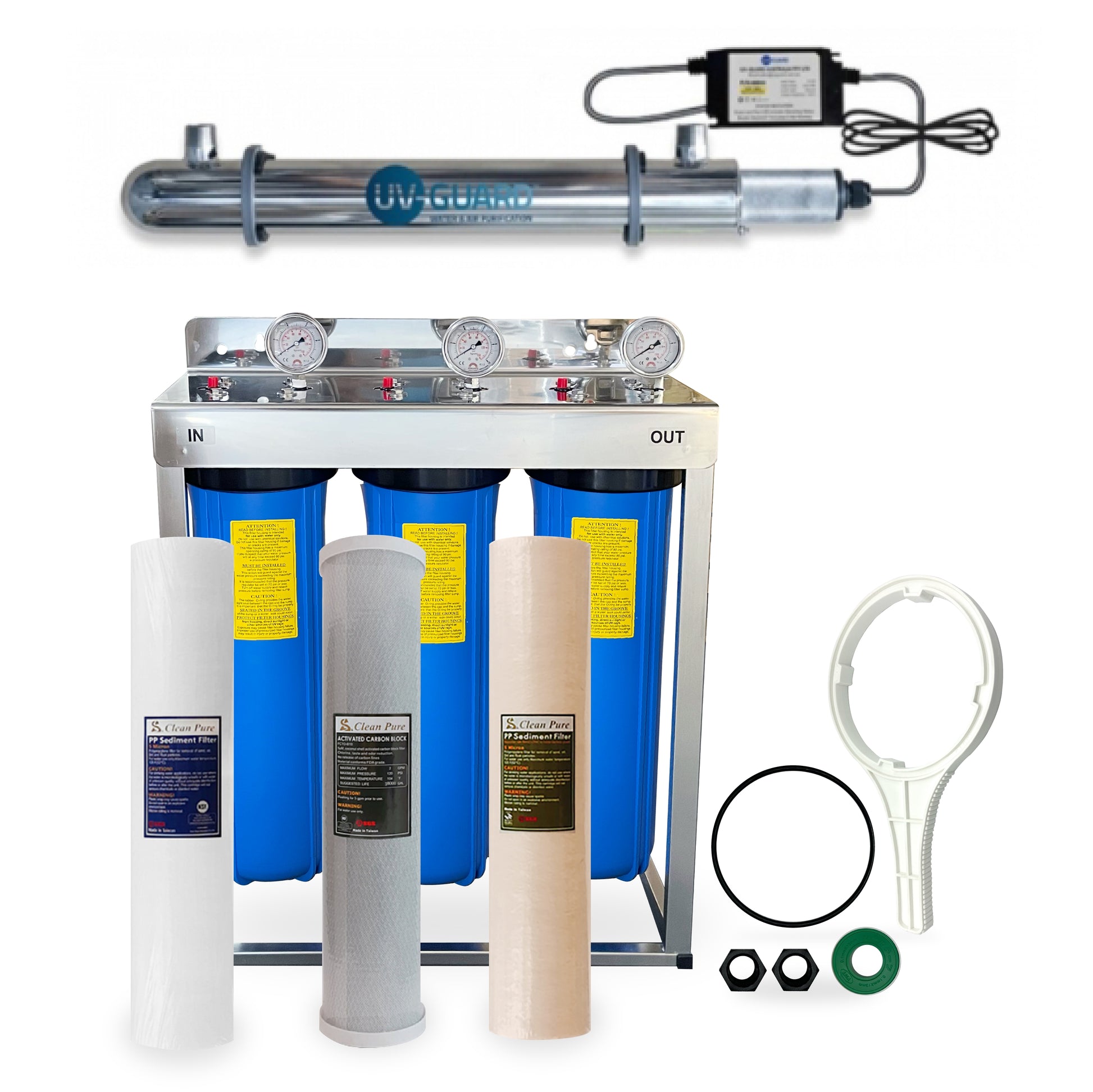

Kit includes
1X (20"-4.5") Big Blue Triple Water Filter Housing
3X Gauge

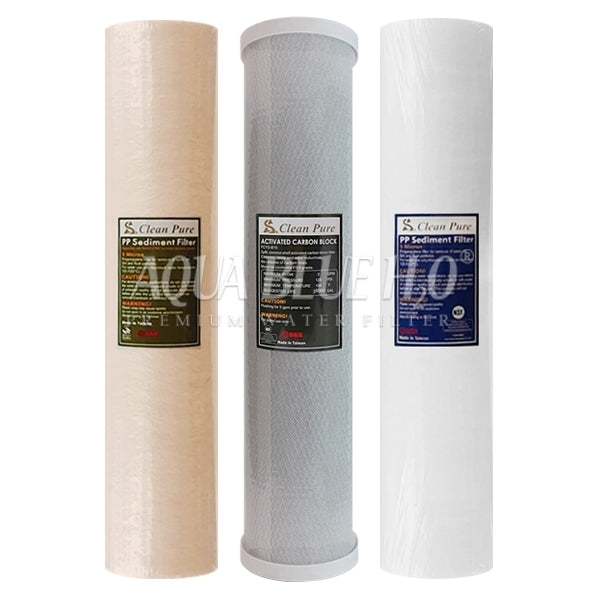

1X (20"-4.5") PP Sediment supported with NANO-ZINC
1X (20"-4.5") CTO 5 Micron
1X (20"-4.5") PP Sediment
1X Metal Bracket Heavy Duty
2X (1" To -3/4") Bushing
1X Housing Wrench
1X Extra O ring for the future replacement
1X Teflon Tape

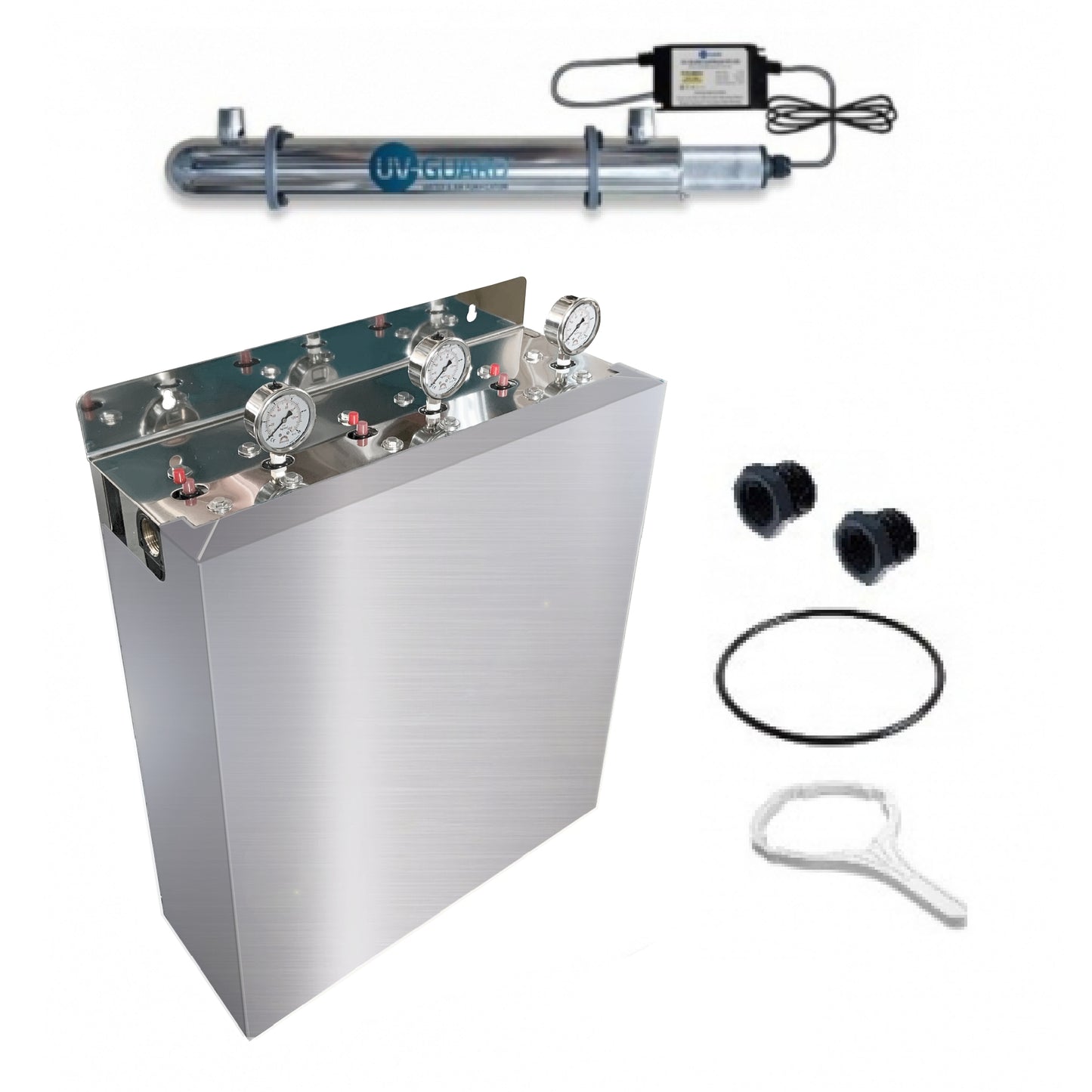

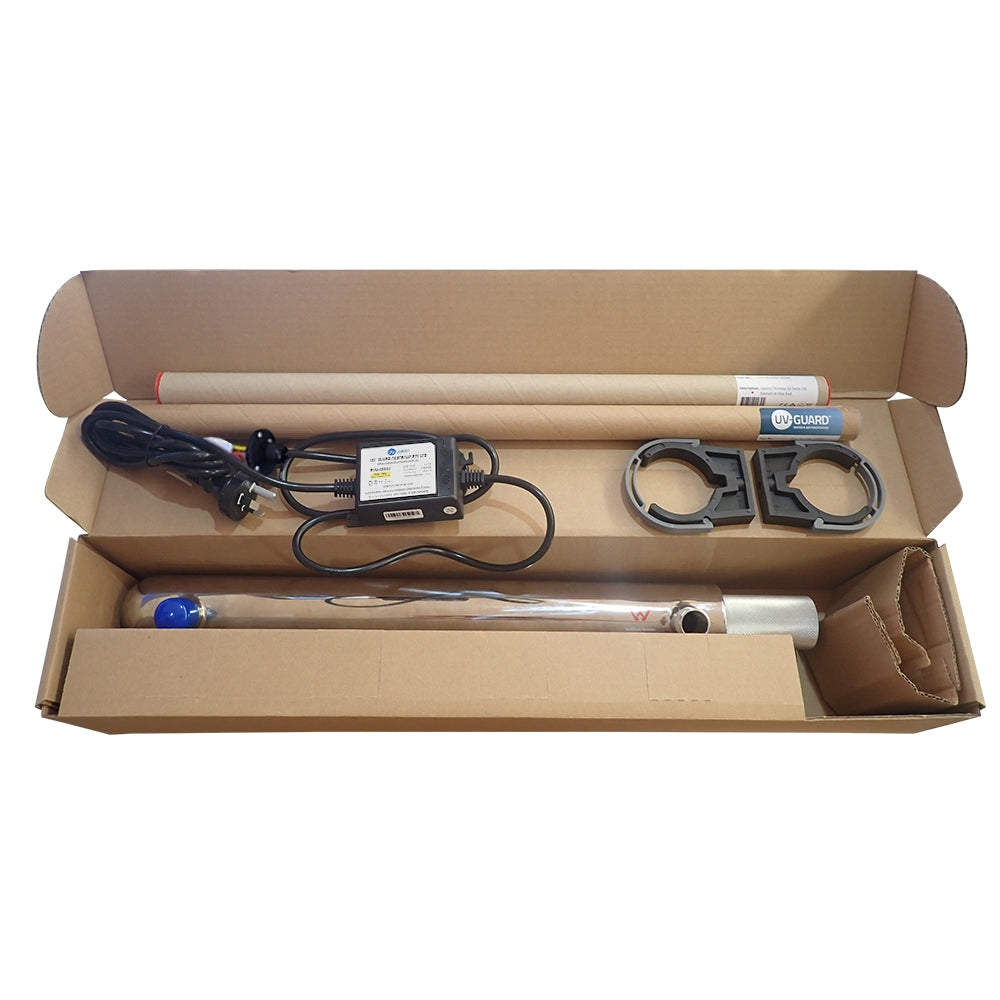

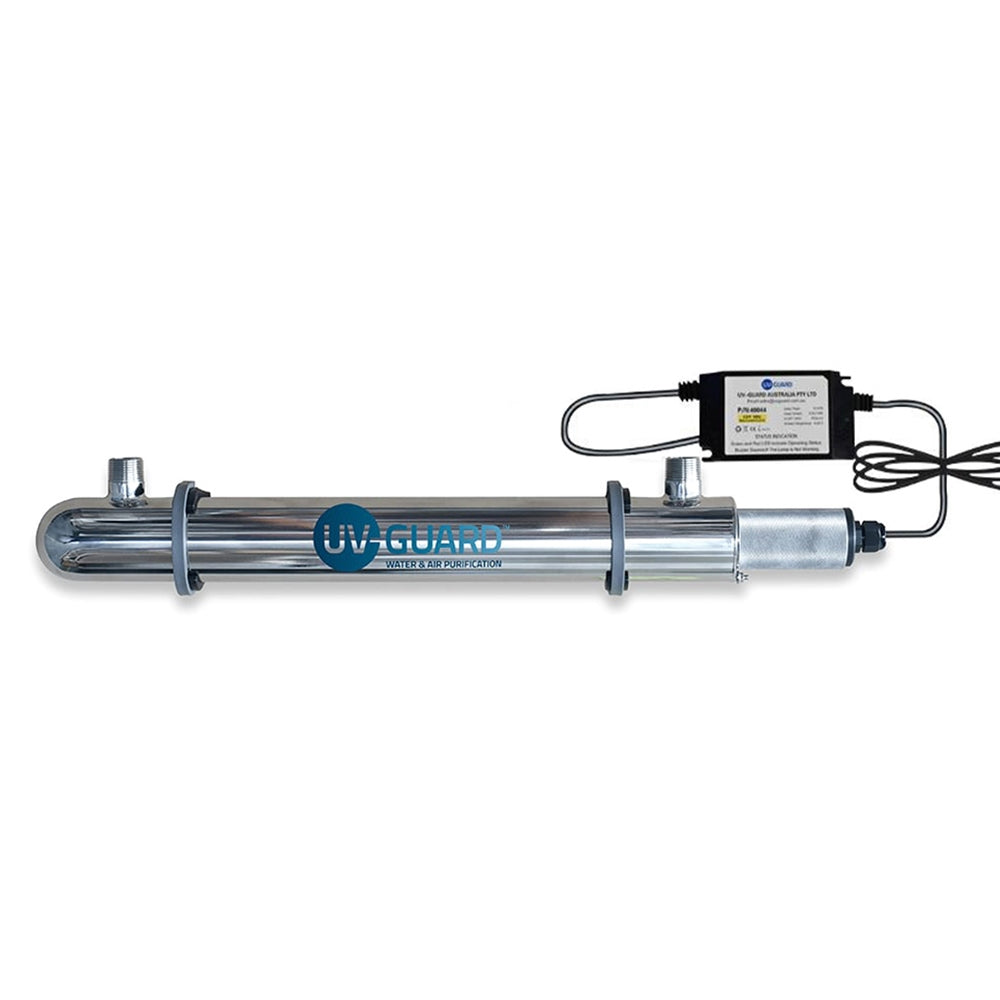

UV Guard UVG SLT30 Under Sink Ultraviolet Light System - 34 LPM 30 Watt

UVG SLT30, UV system (small house, 34 lpm) with 316 grade stainless steel reactor, 3/4” male BSP inlet and outlet connections in a “U” formation, 30W UV lamp, quartz, o-ring and heavy duty poly mounting brackets.

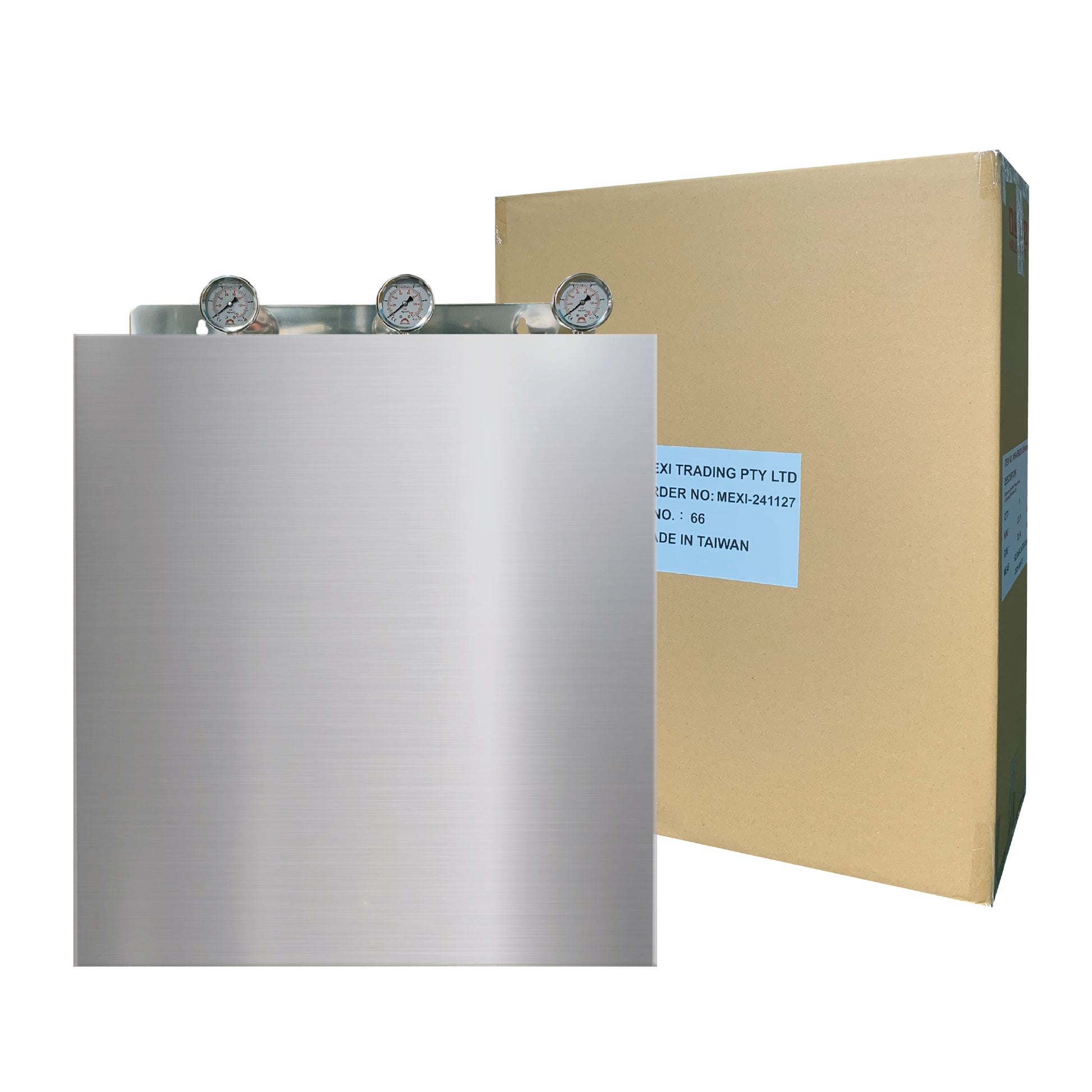

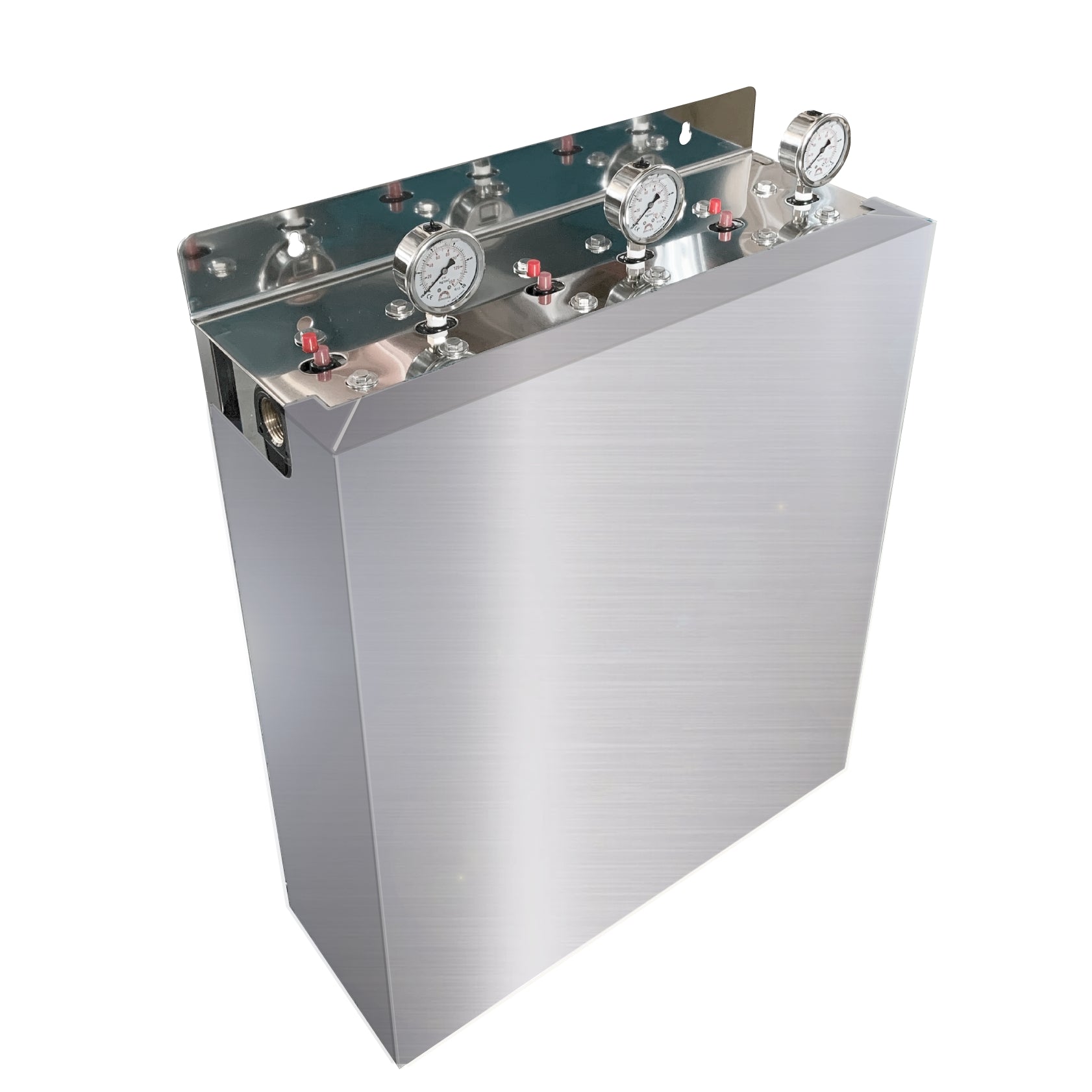

WHABB203 /  STAINLESS STEEL FREE STANDING

20" Big Blue Triple Housing with Stand PP Sediment supported NANO-ZINC,(   INHIBIT BACTERIA)  Activated Carbon Block Filters

 Easy to install.
• Large capacity for carbon cartridge.
• Removes sediment.
• TRIPLE Stage which means longer cartridge life.
• Excellent chlorine, taste & odour reduction reduction.
• Peace of mind with whole house filtration.
• No moving parts.
• No chemicals.
• Low maintenance.
• Protects and prolongs life of appliances.
• No power required.

20" Big Blue Whole House Water Filtration System - this water treatment system treats all of the water entering your home, removing sand, silt, sediment, rust, and other particles that can damage your water softener, prematurely foul carbon filters or ruin the plumbing fixtures and valves. This Dual Water System effectively eliminates many impurities from tap water to offer sparkling clean and great tasting water throughout your whole house.

WATER FLOW 70 LITERS PER MINUTE SUIT FOR ALL WHOLE HOUSE  SUITABLE FOR  ANY FLOW  0-100LPM

Kit includes
1X (20"-4.5") Big Blue Triple Water Filter Housing

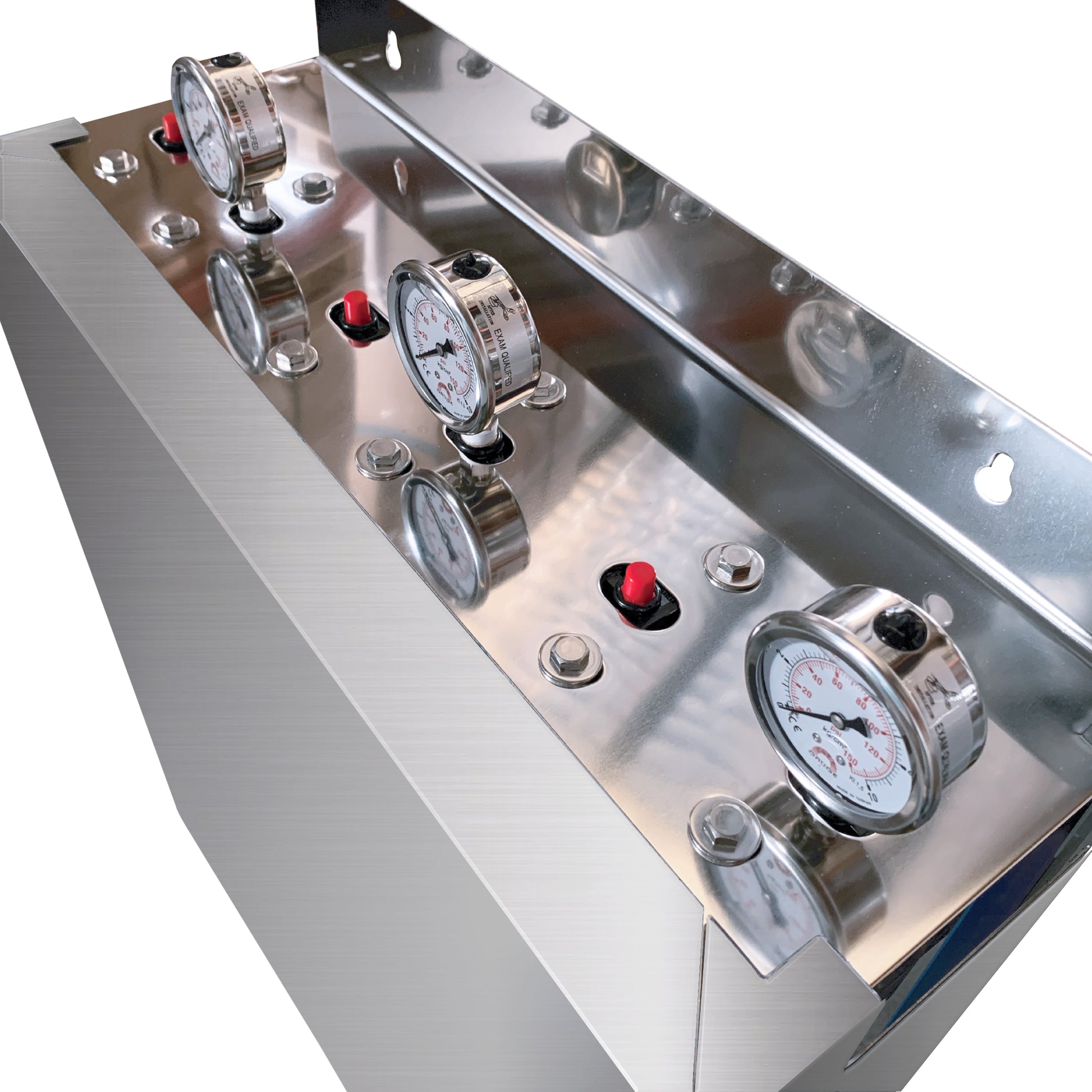

3X Gauge
1X (20"-4.5") PP Sediment supported with NANO-ZINC HIGH FLOW
1X (20"-4.5") CTO HIGH FLOW

1X (20"-4.5") PP Sediment HIGH FLOW
1X Metal Bracket Heavy Duty
2X (1" To -3/4") Bushing
1X Housing Wrench
1X Extra O ring for the future replacement
1X Teflon Tape

20" x 4.5" Triple Big Blue Whole House Water Filter System Complete with Hard Water Conditioner  STAINLESS STEEL  BRACKET WITH STAND

AS THIS FILTER SET HAS  NANO ZINC AND  SEDIMENT FILTER SET  YOU WONT NEED UV STERILIZER OR SOFTER

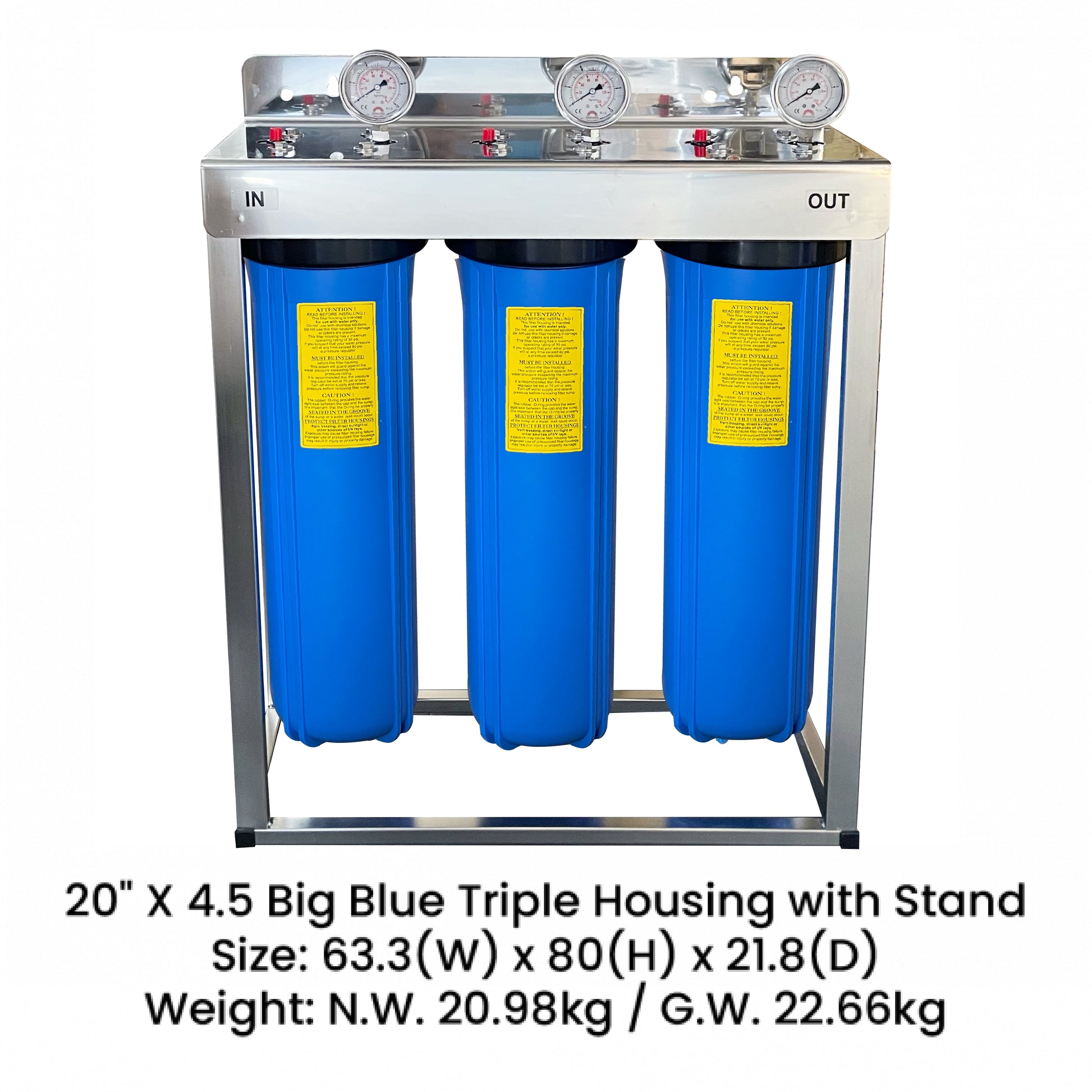

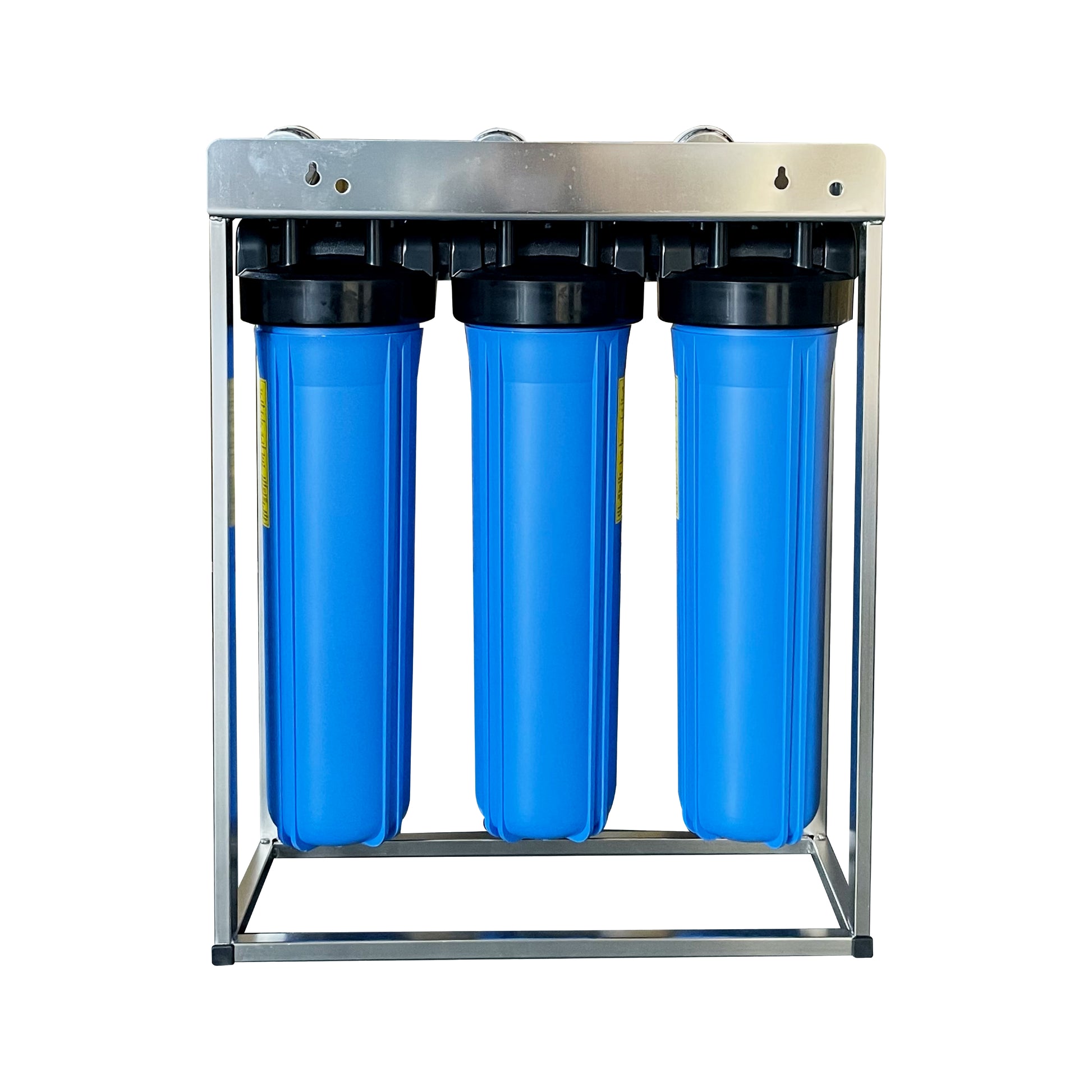

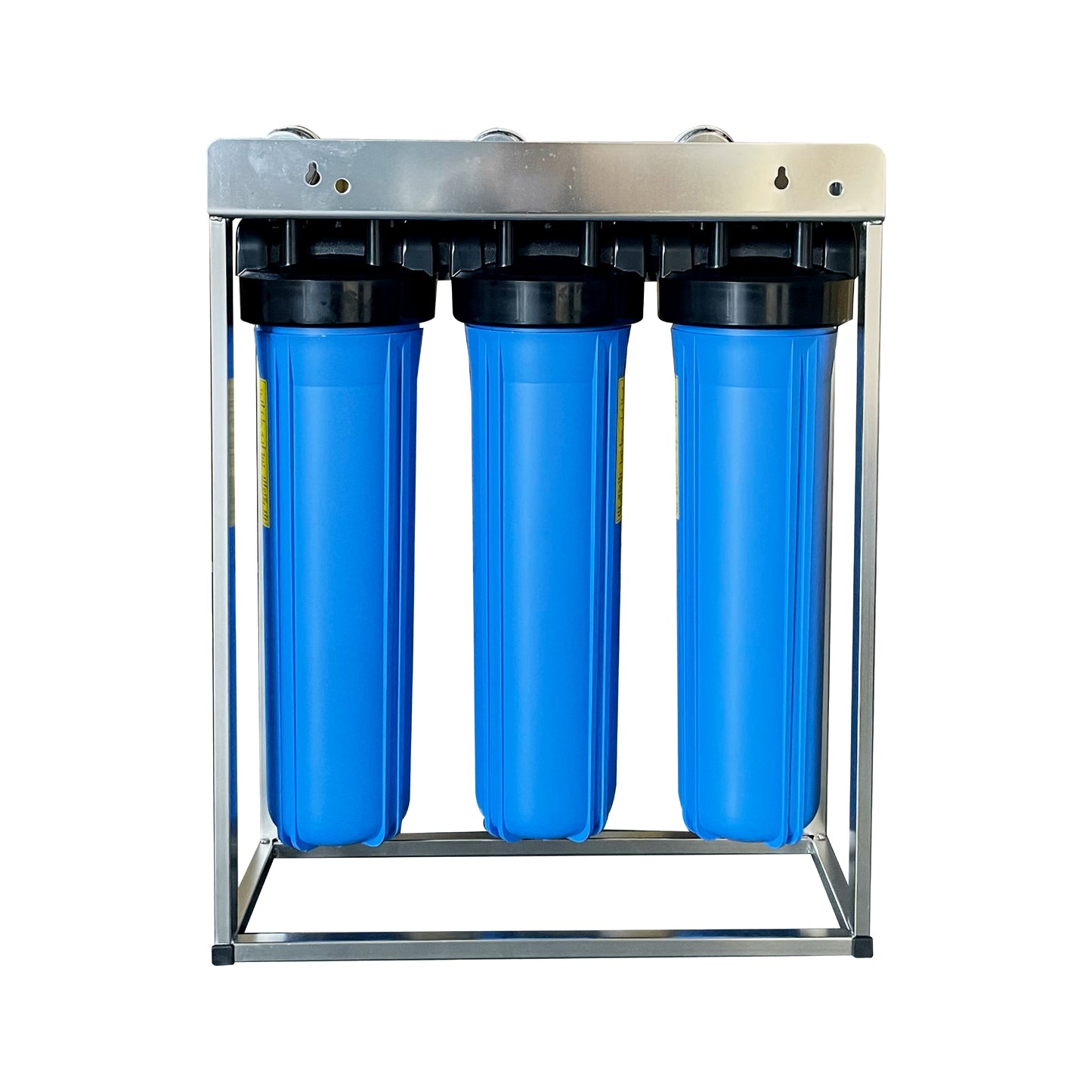

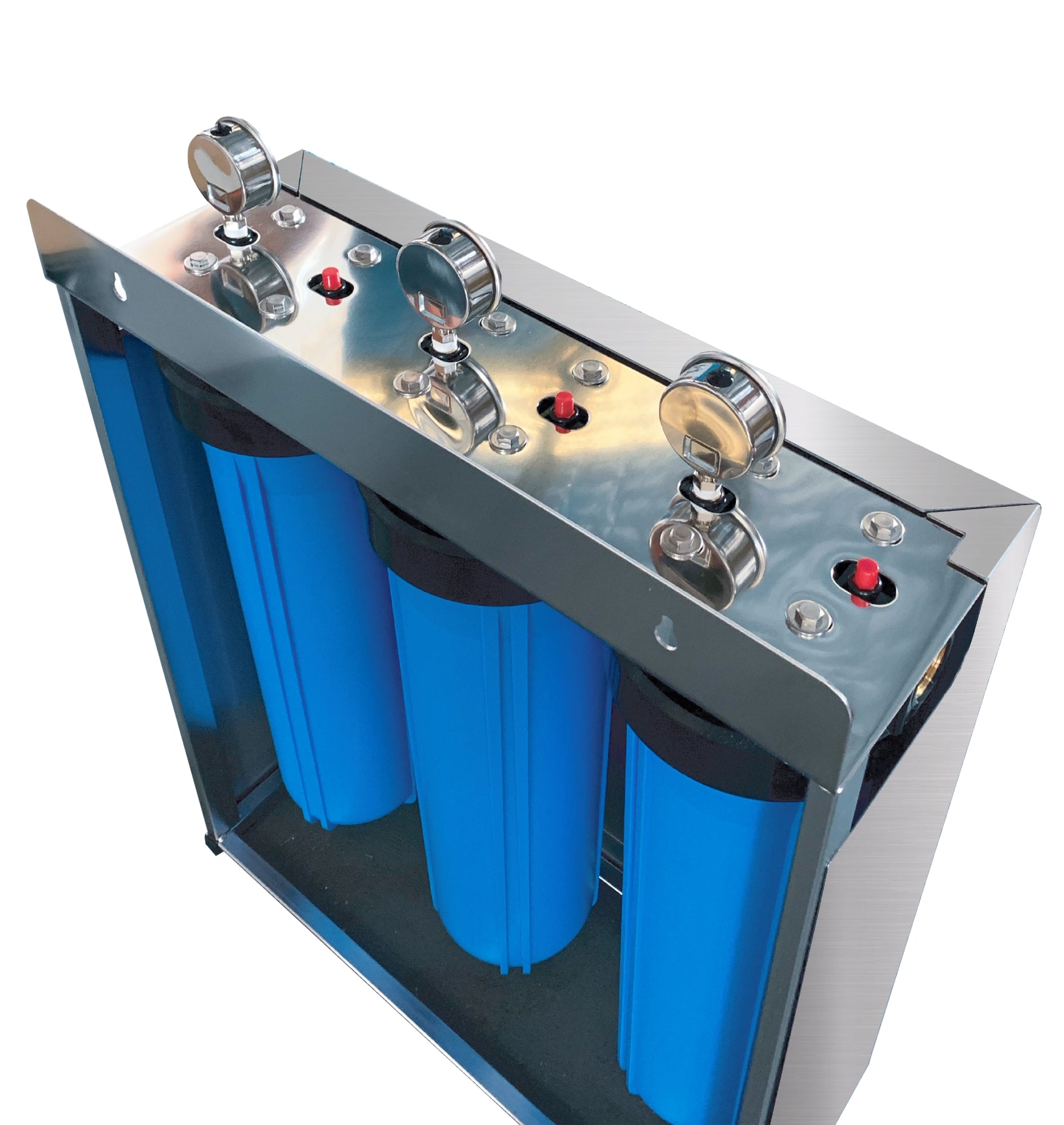

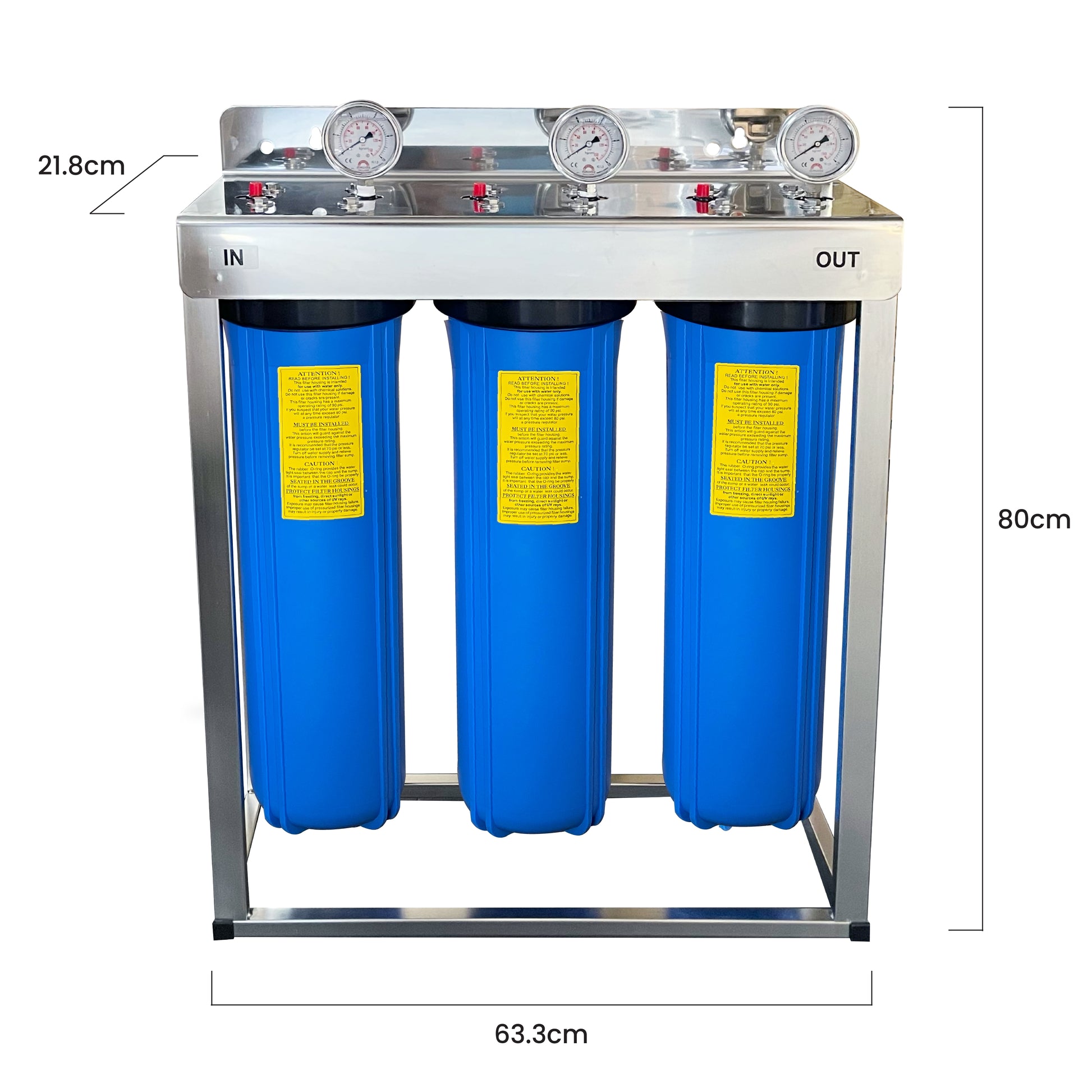

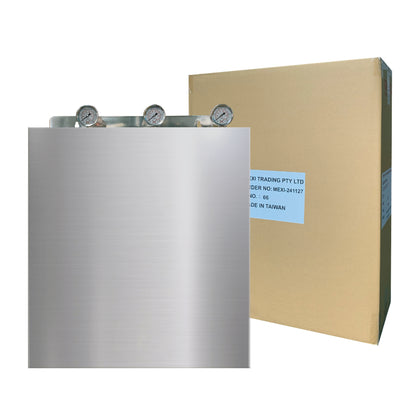

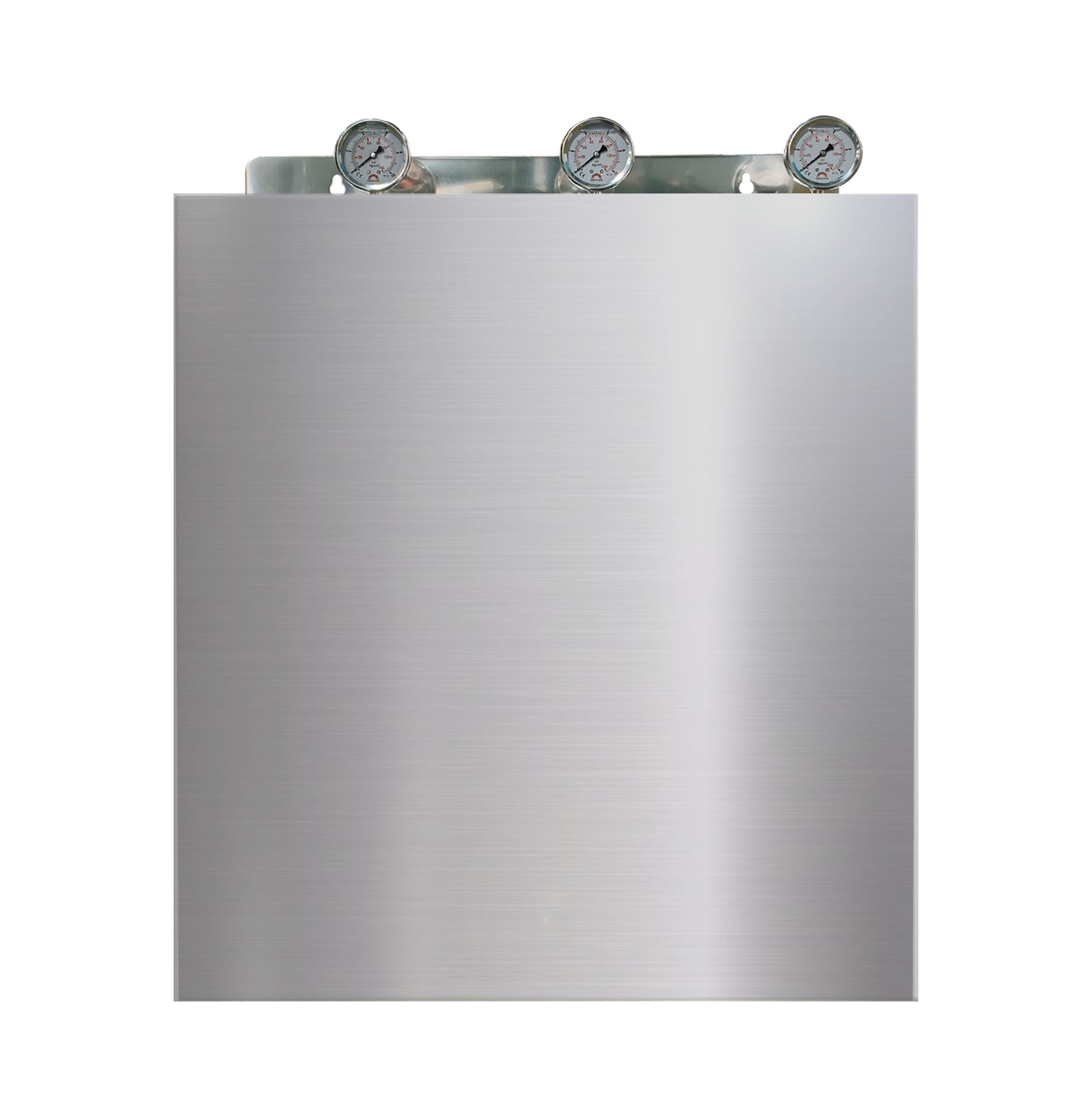

20" X 4.5 Big Blue Triple Housing with Stand

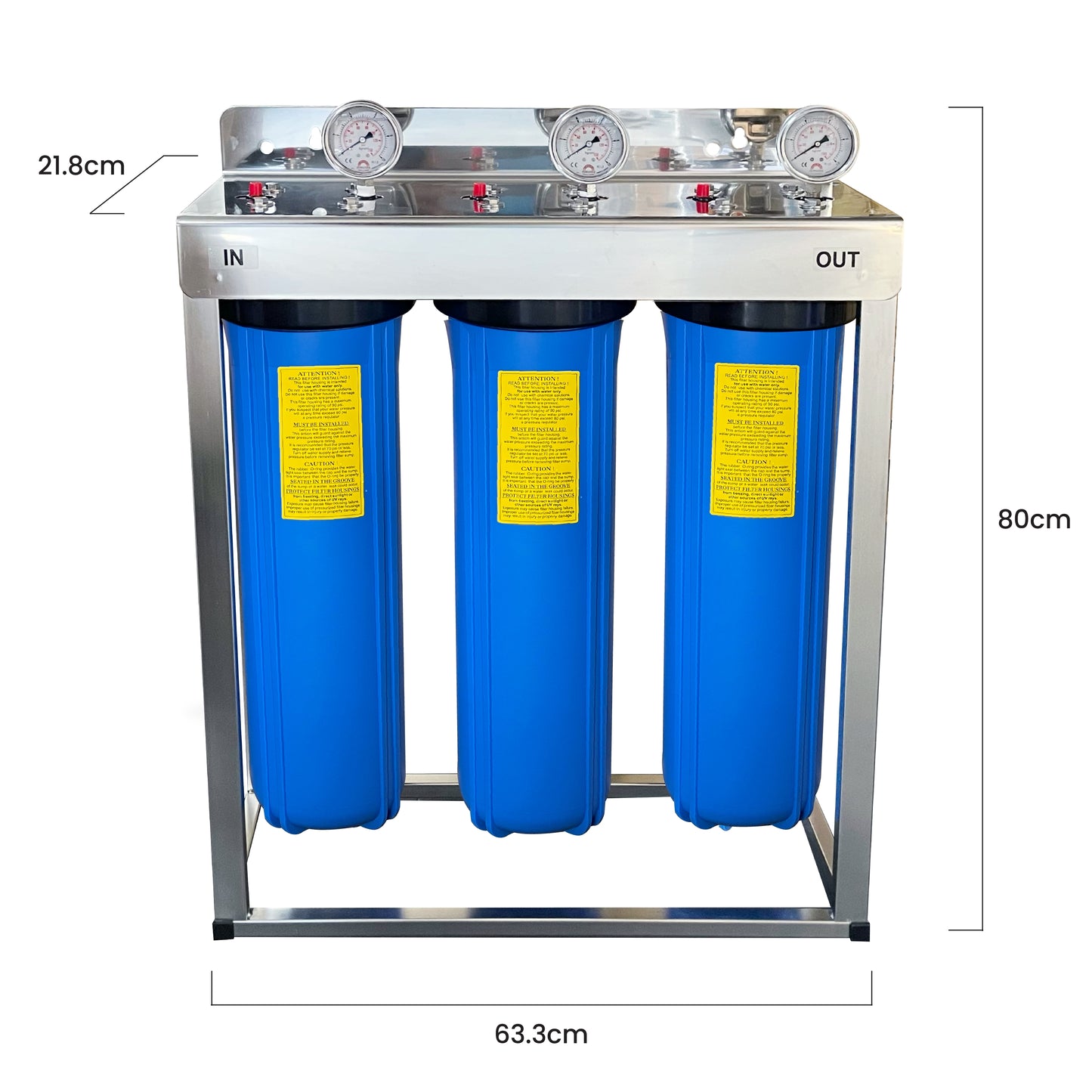

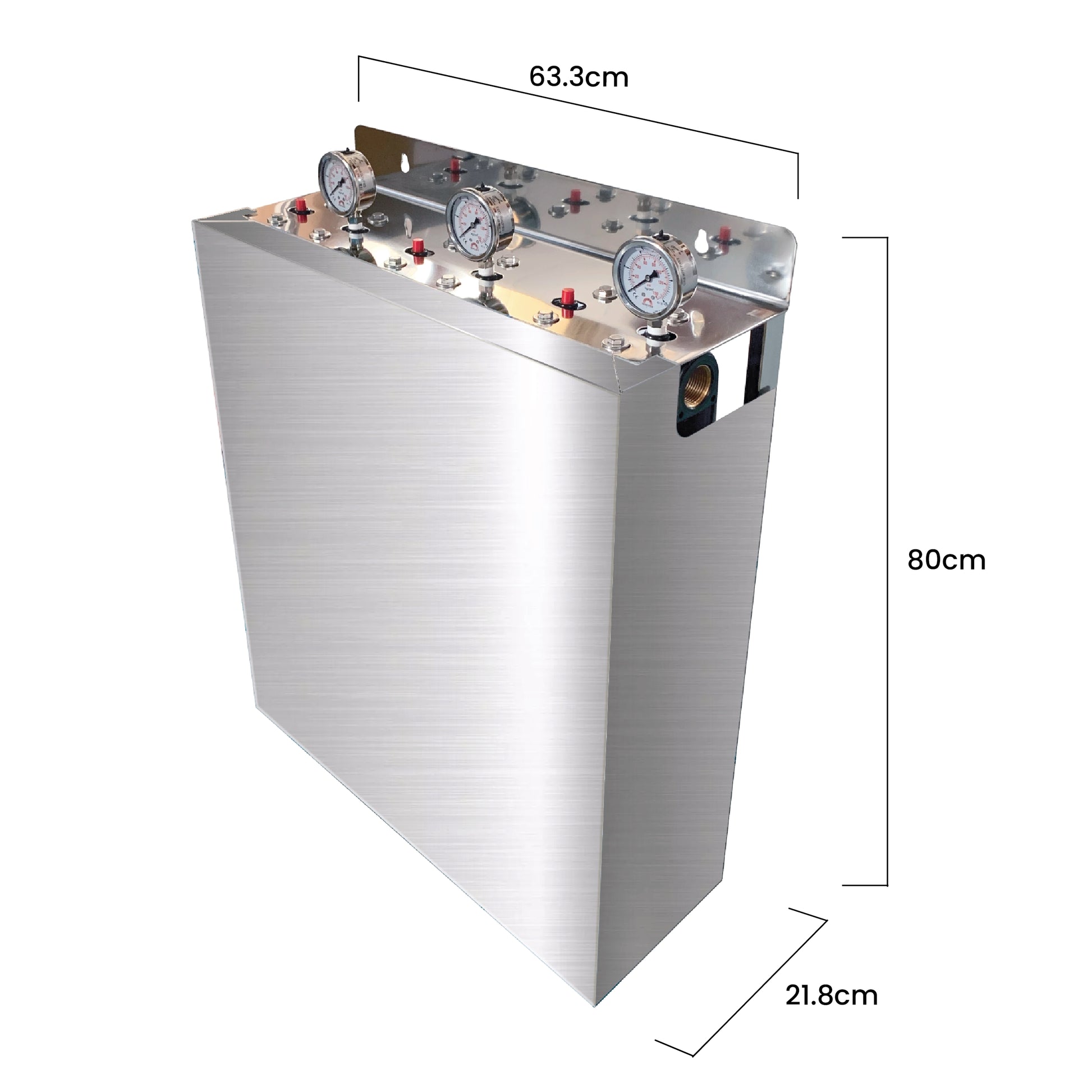

Size: 63.3(W) x 80(H) x 21.8(D)
Weight: N.W. 20.98kg / G.W. 22.66kg

WATER FLOW 70 LITERS PER MINUTE SUIT FOR ALL WHOLE HOUSE  SUITABLE FOR  ANY FLOW  0-100LPM

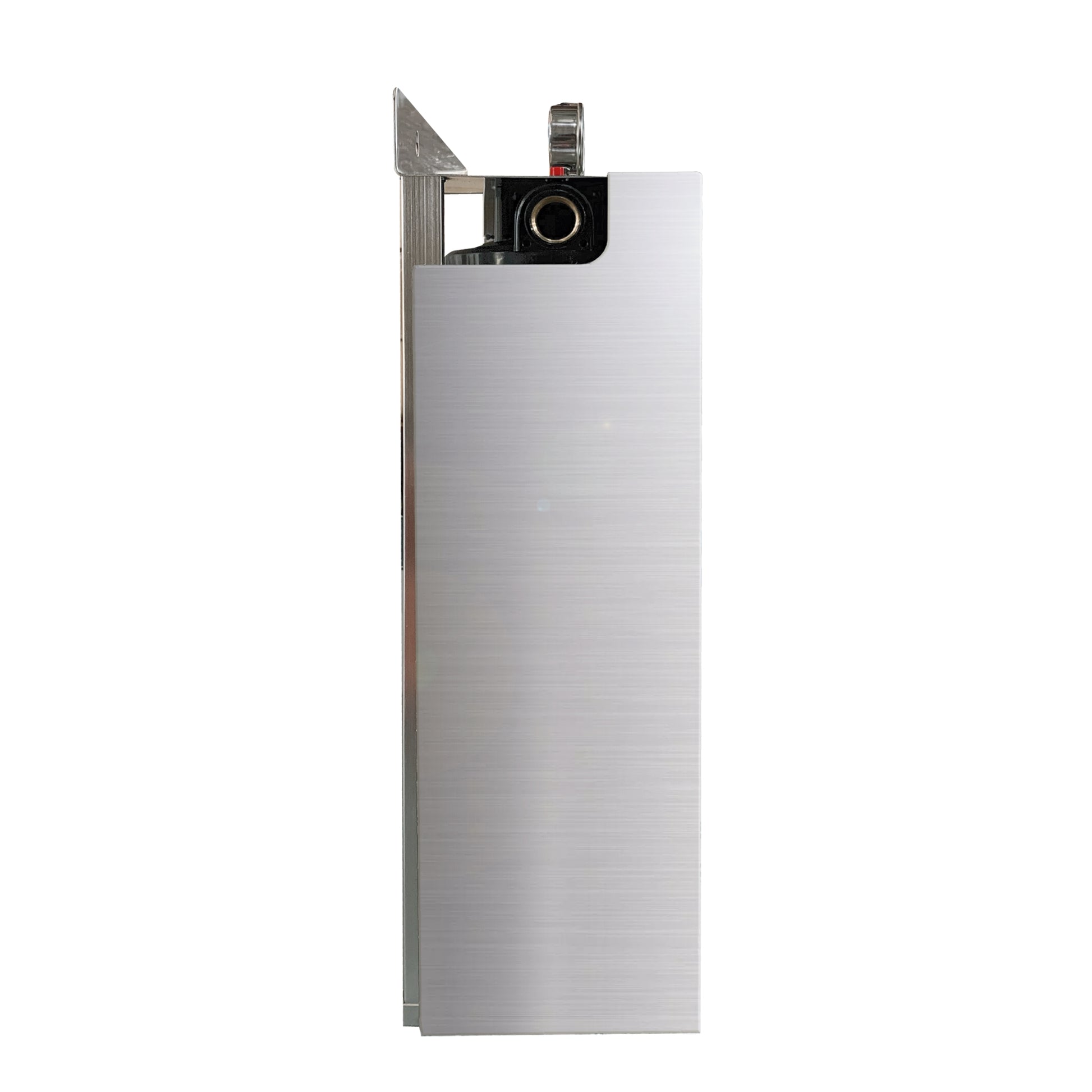

OUTPUT SIZE 1" 25mm  ALSO  COMES WITH FREE 3/4 " REDUCING VALVE

PRODUCT IS FULLY ASSEMBLED

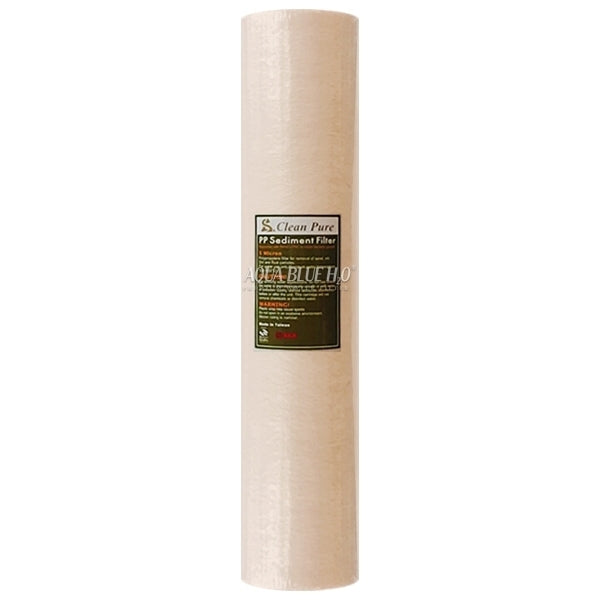

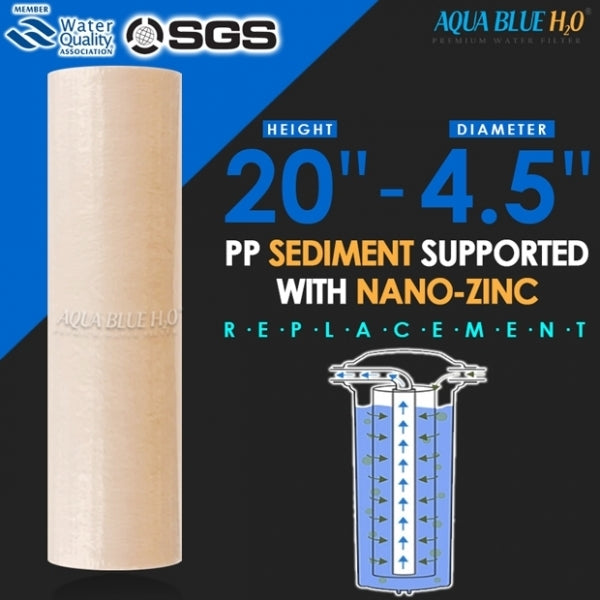

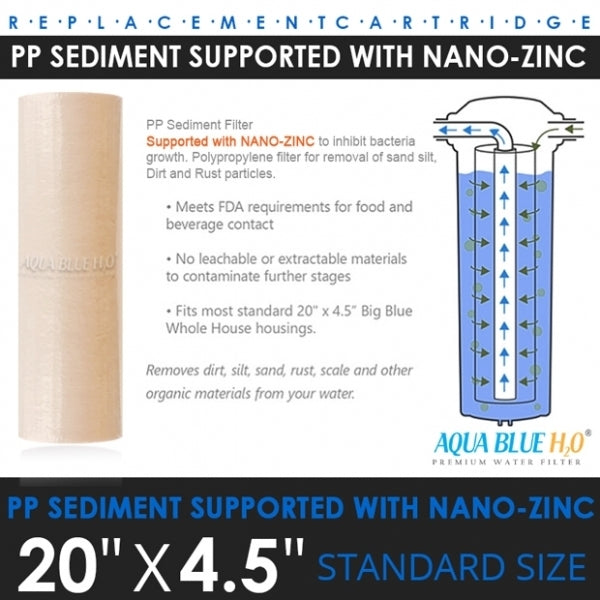

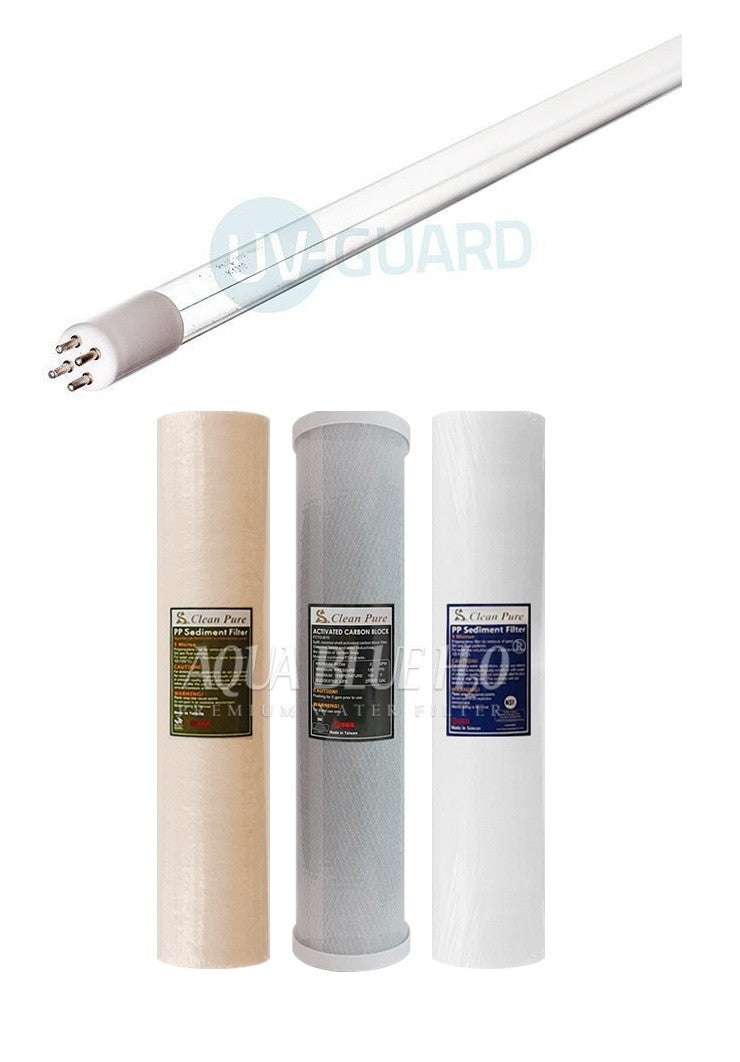

 PP Sediment Supported with NANO-ZINC

- HIGH FLOW  Polypropylene filter for removal of sand silt, Dirt and Rust particles, bacteria   For water use only.
- Formed by thermal bond without use of any binders and adhesives.
- Maximum Temperature Range: 125°F (52°C)
- Dimensions: 20" x 4.5"
- Filters are individually wrapped
*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions.

This cartridge is capable of removing Algae, Dirt, Particles, Rust, Sand, Sediment and Silt so your water is debris-free and prepared for the next stage of this filtration process. Apart from removing the sediment from your water supply so you have cleaner water this filter is also the protection cartridge for the 2 x carbon block cartridges that follow, keeping them as clean as possible so they can work to their full potential removing chlorine.

They are made from high quality spun bonded polypropylene. These cartridges have a large holding capacity for a longer lifespan. Extremely important when the water board gives their system a flush and you get dirty water come down your water line without warning.

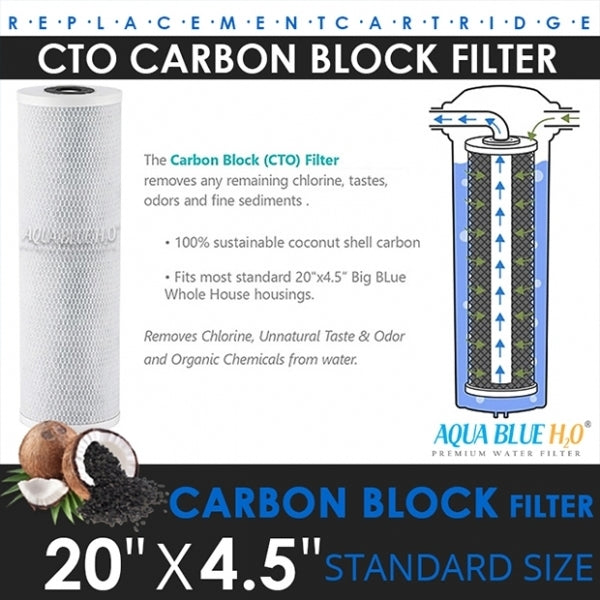

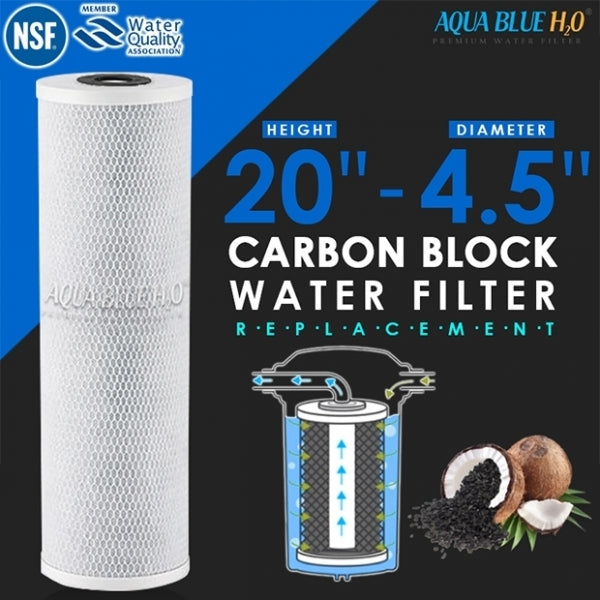

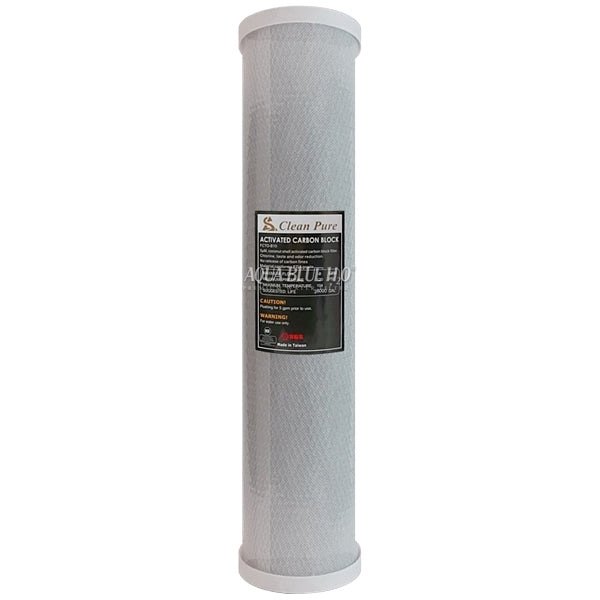

 CTO Carbon Block Filter 5M  WITH 70 LITERS PER MINUTE  FAST FLOW

- HIGH FLOW  Coconut Shell Activated Carbon Block Filter.
- Chlorine, taste , and odour sediment reduction.
- No release of carbon fines
- Material conforms FDA grade.
- This Filter Cartridge is Tested and Certified by NSF International against NSF/ANSI Standard 42 for material requirements only.
- Max. Pressure: 120 psi
- Max. Temperature: 104°F
- Suggested Life: 454,249 L
*Cautions: Flushing for 5 minutes prior to use.
*Warning: For water use only

These 2 stages provide maximum removal of chlorine from your water supply. Both these cartridges are for removing organic’s, chemicals and microorganisms. All our Filter cartridges are manufactured from the highest quality, raw materials with cutting-edge methods resulting in premium performance, reliability, absorption and flow rates. It is the volume of water and the chlorine content that will eventually dictate the lifespan of your cartridges but normally these cartridges are changed annually.

*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions.

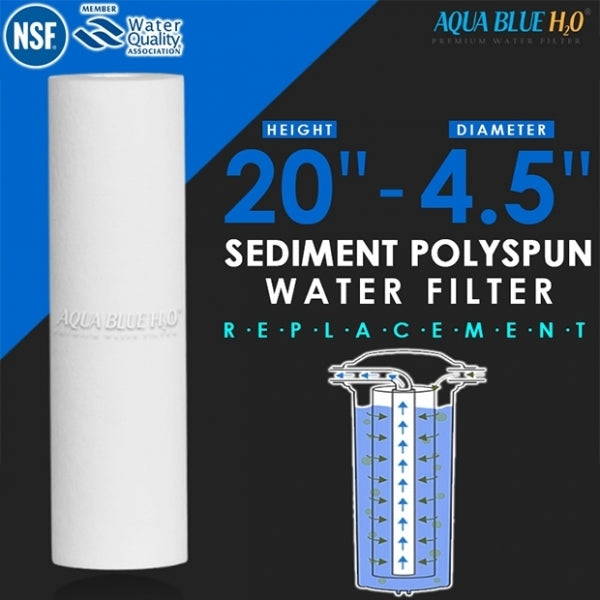

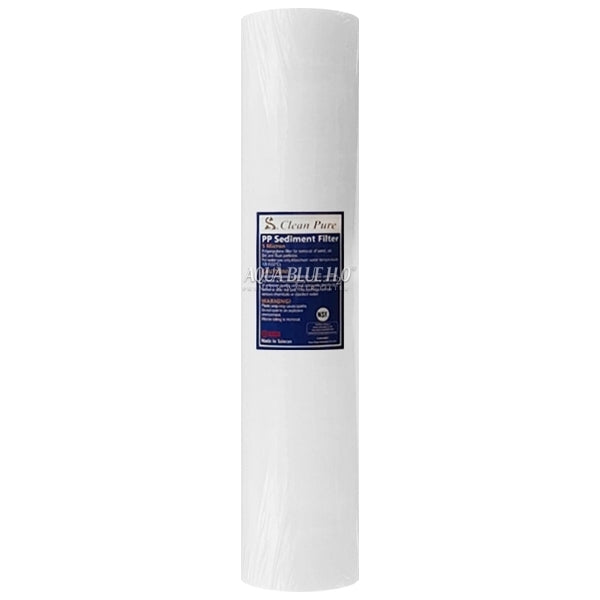

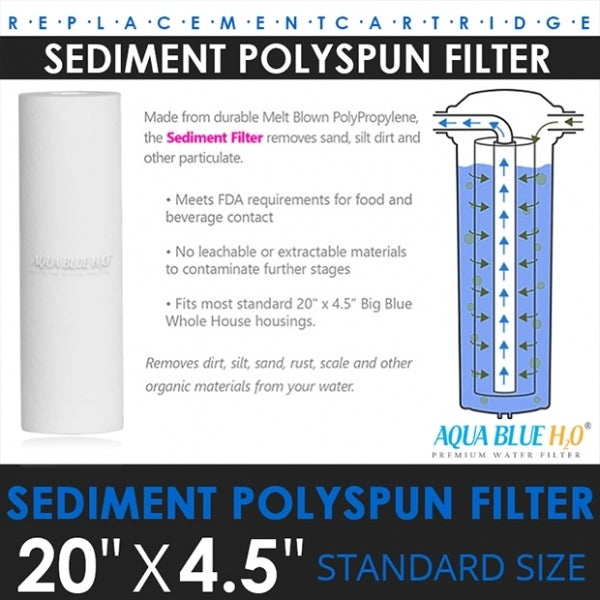

 Sediment Polyspun Filter  5 MICRON WITH 80 LITERS PER MINUTE  WATER FLOW

- Three-layers structure cartridge, High contaminant holding capacity.
- 100% PP Polypropylene for compatibility with a wide range of process fluids.
- 5Micron, Micro-Denier™ melt-blown filtration fiber, high removal ratings. removes sediment, rust , algae removal
- Formed by thermal bond without use of any binders and adhesives.
- This Filter Cartridge is Tested and Certified by NSF International against NSF/ANSI Standard 42 for material requirements only.
- Maximum operating pressure: 125 PSI
- Operating Temperature Range: 125°F (52°C)
- Dimensions: 20" x 4.5"
- Filters are individually wrapped
*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions.

IT002530- water mark certification

https://watermark.abcb.gov.au/product-search/product/138100

SPECIFICTIONS

• 316SS UV reactor with heavy duty poly mounting brackets
• Connections: 3/4” BSP male threads
• Dimensions: 60cm’s x 6.3cm’s
• IP65 Weatherproof controllers
• Warranty: 1 year
• WaterMark Certified

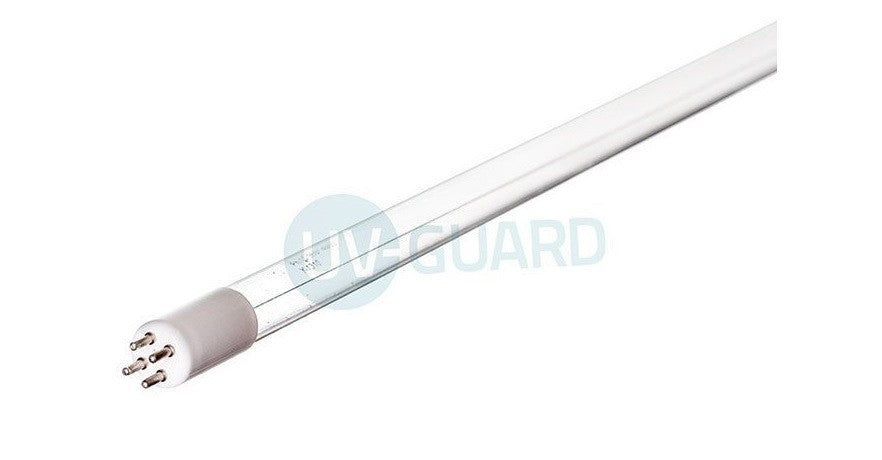

• UV LAMP REPLACEMENT FREQUENCY

UV Lamps should be replaced every 12 months.

IT002530- water mark certification

https://watermark.abcb.gov.au/product-search/product/138100
